Description

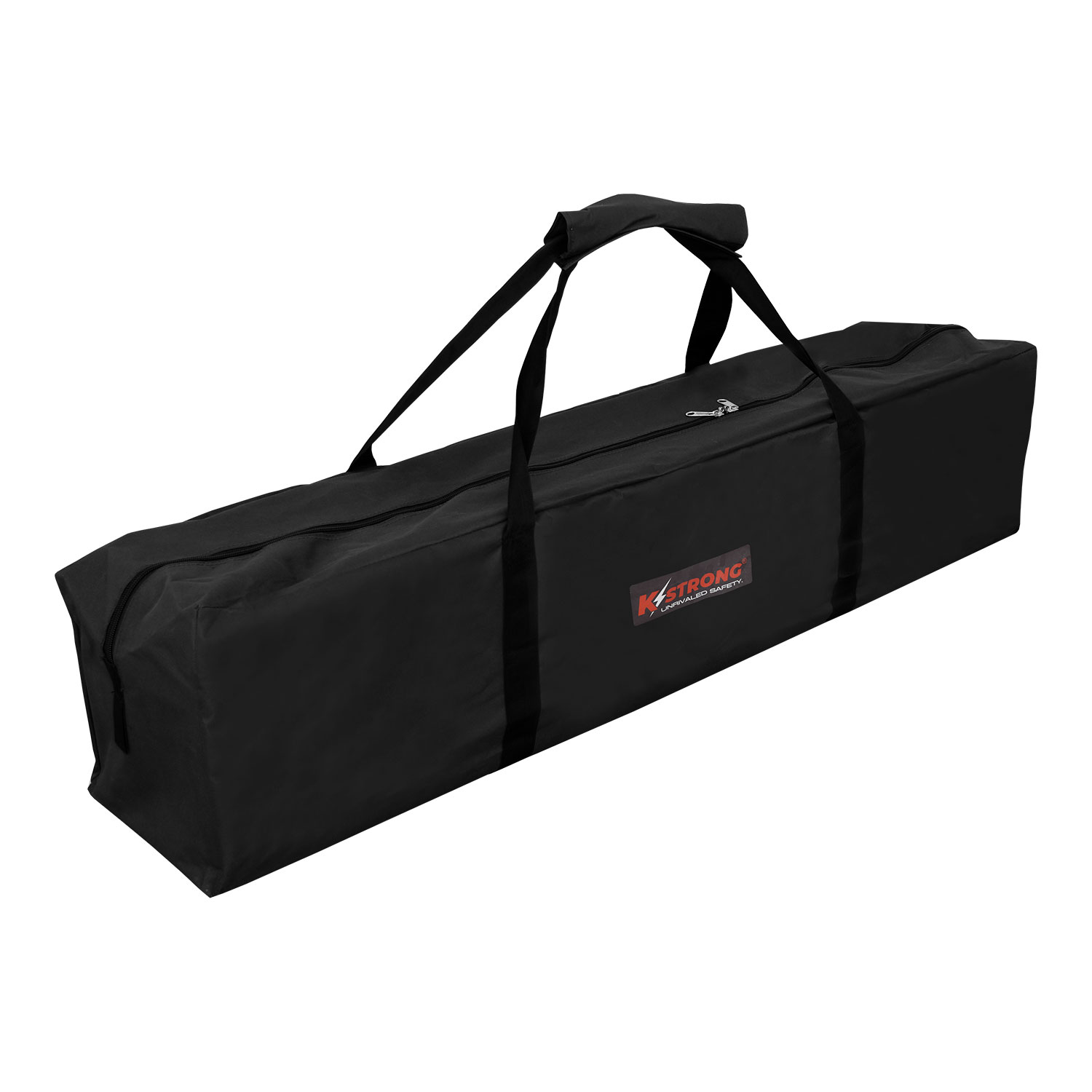

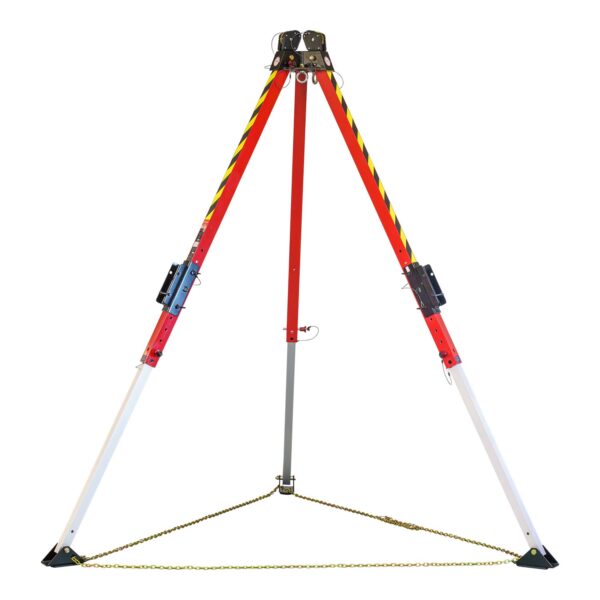

10′ Adjustable with Dual Build-In Pulley Assembly and Storage Bag.
Key Features
DESIGN:
- Includes two (2) pre-installed Universal Lower Assembly Mounting Bracket Receivers (UFT510010B2) for the quick mounting of KStrong material/personnel winches.
Special Note: Installation of a KStrong 3-Way Rescue/Retrieval SRL-R requires an additional upper mounting bracket (Part # UFT510010B), which is sold separately. - Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously
- Securely connected eyebolts (2) to be used for connection to personal protective equipment
- Adjustable height from 74.80” (1.90m) to 120.86”(3.07m) from ground level
- Adjustment achieved by sliding telescopic legs
- Locking pins attached by SS cables
LOAD CAPACITY:
310 lbs. (550kg)
MEGAPOD LEGS:
Material: Aluminum Alloy
Finish: Anodized / Powder Coating
HEAD:
Material: Aluminum Alloy
Finish: Powder Coated Black
LOCKING PINS:
Material: Stainless Steel
Finish: Electropolished
WEIGHT:
59.89 lbs. (27.17kg) ± 0.22 lbs. (0.10kg)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017 Type A
ADJUSTMENT HOLE:
| Adjustment | Overall Height | Outer Opening Radius |
|---|---|---|
| 1 | Min. 74.80″ (1900mm) | Min. R72.24″ (1835mm) |
| 2 | 111.96″ (2844mm) | R112.68″ (2863mm) |
| 3 | 113.78″ (2890mm) | R114.37″ (2905mm) |
| 4 | 115.59″ (2936mm) | R116.06″ (2948mm) |
| 5 | 117.40″ (2982mm) | R117.75″ (2991mm) |
| 6 | Max. 120.86″ (3070mm) | Max. R119.44″ (3034mm) |
