Description
KStrong® Kapture™ Elite 5-Point Full Body Harness, Dorsal D-Ring, MB Legs (ANSI) (UFH10201P)
Key Features
DESIGN:
- One dorsal attachment D-ring for fall arrest.
- Adjustable Shoulder straps.
- Adjustable leg straps.
WEBBING:
Material: Polyester
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.
STITCHING THREAD:
Material: High-tenacity polyester
METAL COMPONENT:
Material: Alloy Steel
Finish: Silver or Golden Yellow Galvanized
CAPACITY RANGE:
ANSI – 130 – 310 lbs.; OSHA – 420 lbs.
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.11-2021

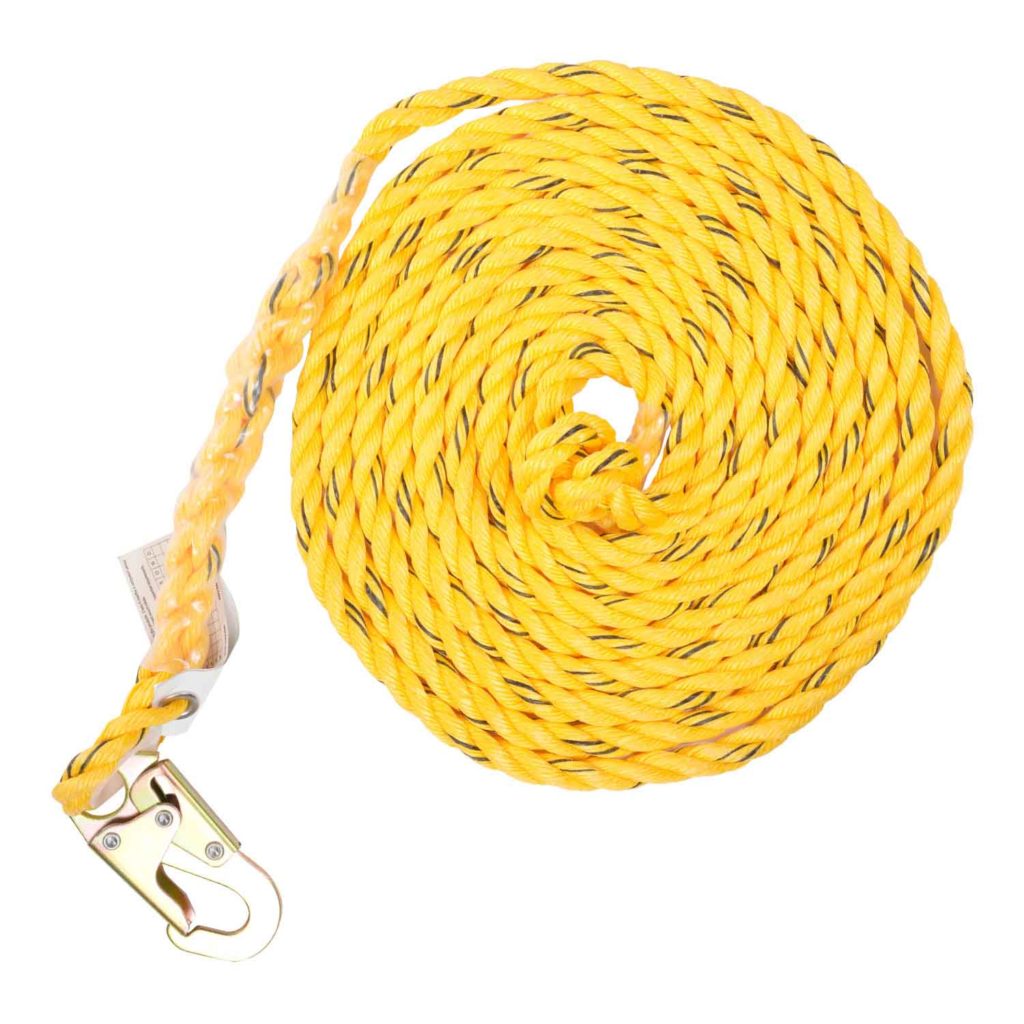

KStrong® 50 ft. Vertical Rope Lifeline, Locking Snap hook on anchor end, other end cut and taped (UFR100050)
Key Features
DESIGN:
- This lifeline is made up of high strength Polysteel Twisted rope.
- The diameter of the rope is 5/8”.
- It is provided with snap hook (PN 146) spliced at one end and the other side a stop knot.
MATERIAL:
Polysteel
LENGTH:
50 ft.
WEIGHT:
7.91 lbs. ± 0.02 lbs. (3588 gm. ± 10 gm)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.1-2007
KStrong® 3 ft. Manual Shock Absorbing Rope Grab Assembly (ANSI) (UFG611020)
Key Features
DESIGN:
- Connected with shock pack PN 500 and has snap hook as attachment.
- 1.73” (44mm) wide tear webbing for energy absorption.
- 1.73” (44mm) wide polyester webbing as backup strap and stitched around the free end of tear webbing to from loops for attachment. The entire assembly folded and packed in thick Polyethylene sleeve with synthetic labels.
- Rope Grab is used for rope access.
WEBBING:
Material: Polyester
Width: 1.73” ± 0.04” (44 ±1 mm)
Breaking strength: 6000 lbs. (2722kg) -Min
STITCHING THREAD:
Material: High-tenacity polyester
WEIGHT:
2.60 lbs. ± 0.02 lbs. (1179 gm. ± 10 gm)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.1-2007
KStrong® Hinged Reusable Steel Roof Anchor (ANSI) (UFA30001)
Key Features
DESIGN:
- An ideal anchorage device to be fixed on wooden beams used in roofing.
- Consists of two steel flaps each having 16 holes which can be fitted on the two sides of a wooden beam by means of nails inserted in the holes.
- The D-Ring can be safely used as an anchorage point.
CABLE:
Material: High Strength Alloy Steel
Minimum Breaking Strength: 5000 lbs.
Finish: Power Coated or Zinc Plated
WEIGHT:
2.39 lbs. ± 0.22 lbs. (1084 gm ± 100 gm)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017
