Description
Key Features
DESIGN:

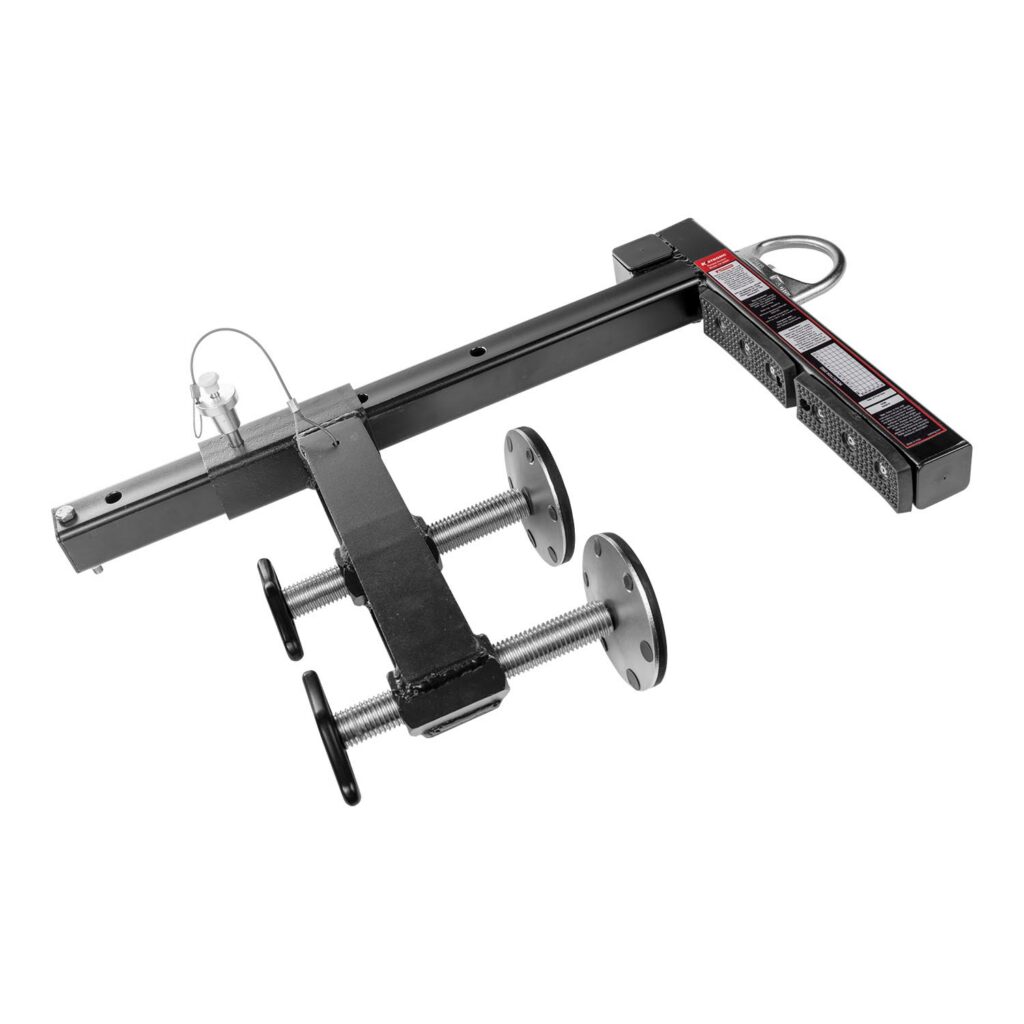

- Parapet anchor with extended movable arm which allows installation on the parapet with moulding on outer edge.
- Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building.
- Suitable to be installed on varying thickness of the parapet. Width adjustment feature provided.
- Tightening on to the parapet by use of rubber disks.
INSTALLATION:
Min. width of the Parapet on which Installation Possible: 2.36” (60mm)
Max. width of the Parapet on which Installation Possible: 14.17” (360mm)
MATERIAL:
High strength alloy steel
FINISH:
Silver or Golden Yellow Galvanized
SYSTEM STRENGTH:
Greater than 25 kN
WEIGHT:
21.08 lbs. ± 0.22 lbs. (9560gm ± 100gm)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017
Welding (Arc Flash)
