Description

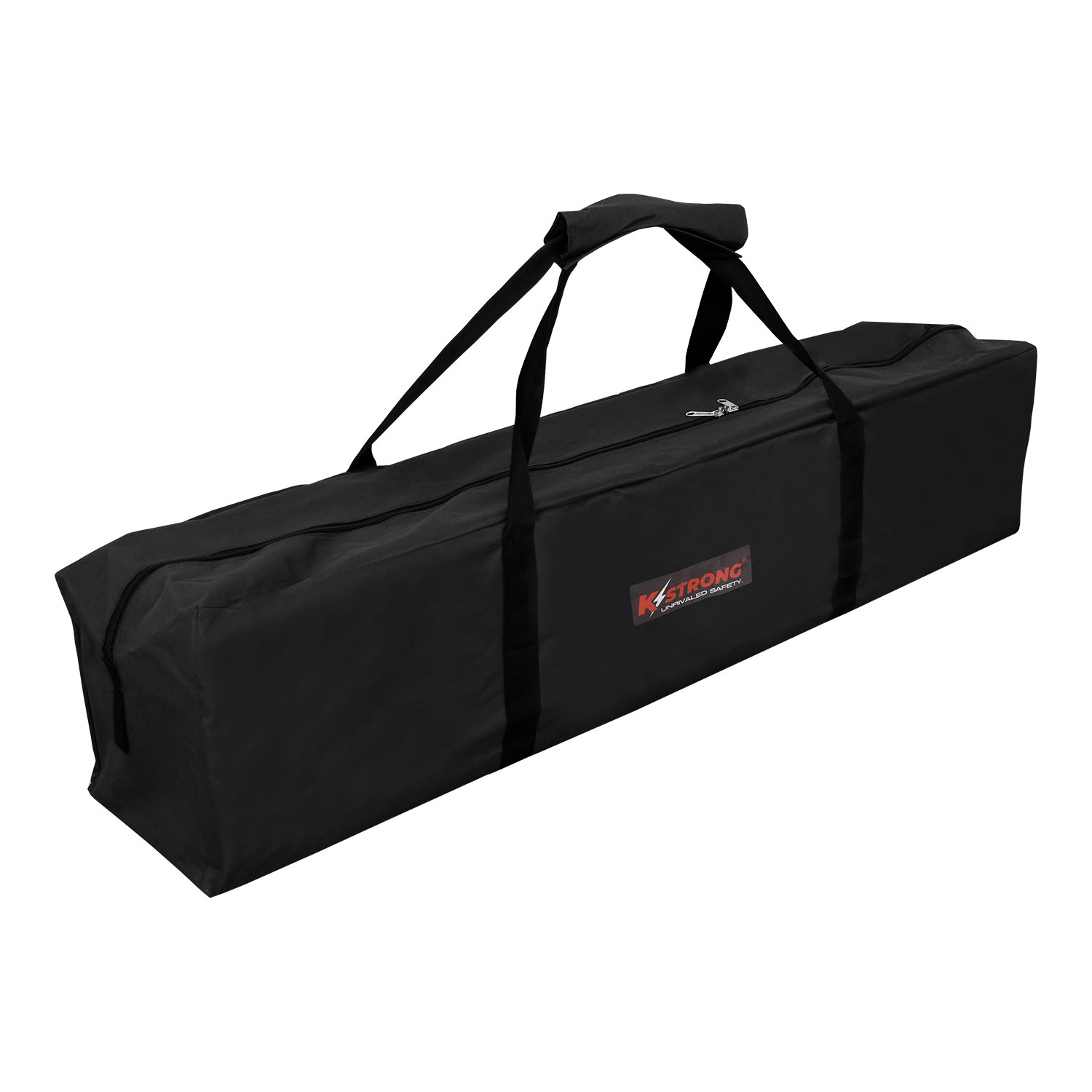

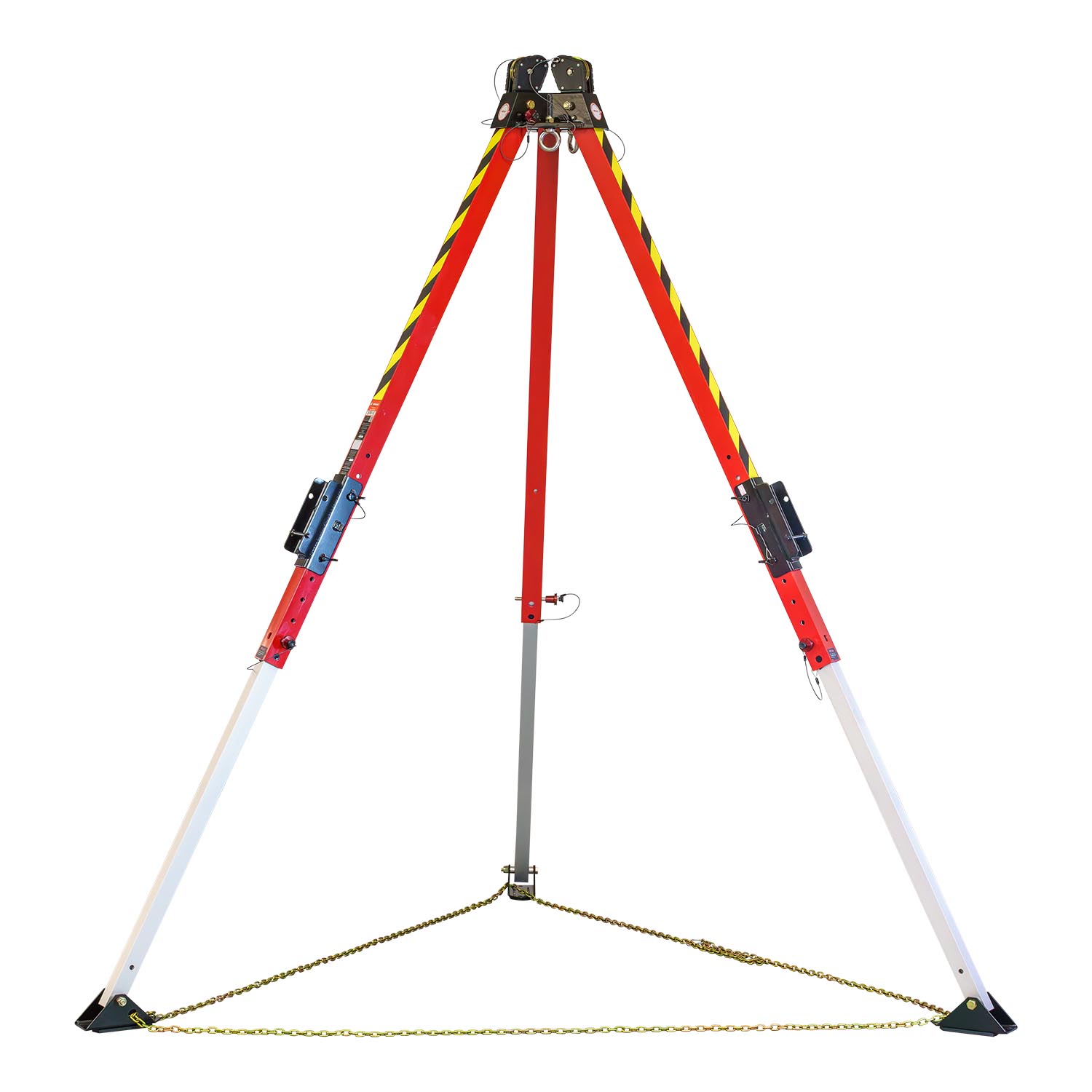

7′ Adjustable with Dual Build-In Pulley Assembly and Storage Bag.
Key Features
DESIGN:

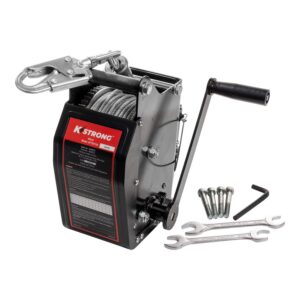

- Includes two (2) pre-installed Universal Lower Assembly Mounting Bracket Receivers (UFT510010B2) for the quick mounting of KStrong material/personnel winches.
Special Note: Installation of a KStrong 3-Way Rescue/Retrieval SRL-R requires an additional upper mounting bracket (Part # UFT510010B), which is sold separately. - Adjustable height from 48.50” (1.23m) to 89.29” (2.26m) from ground level
- Adjustment achieved by sliding telescopic legs
- Locking pins attached by SS cables
- Securely connected eyebolts (2) to be used for connection
to personal protective equipment - Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously
LOAD CAPACITY:
310 lbs. (500kg)
MEGAPOD LEGS:
Material: Aluminum Alloy
Finish: Anodized / Powder Coating
HEAD:
Material: Aluminum Alloy
Finish: Powder Coated Black
LOCKING PINS:
Material: Stainless Steel
Finish: Electropolished
WEIGHT:
52.42 lbs. (23.78kg) ± 0.22 lbs. (0.10kg)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017 TYPE A
ADJUSTMENT HOLE:
| Adjustment | Overall Height | Outer Opening Radius |
|---|---|---|
| 1 | Min. 55.11″ (1400.0mm) | Min. R58.38″ (1483.0mm) |
| 2 | 81.89″ (2080.0mm) | R84.60″ (2149.0mm) |
| 3 | 83.70″ (2126.0mm) | R86.29″ (2192.0mm) |
| 4 | 85.51″ (2172.0mm) | R87.99″ (2235.0mm) |
| 5 | 87.32″ (2218.0mm) | R89.64″ (2277.0mm) |
| 6 | Max. 88.58″ (2250.0mm) | Max. R91.33″ (2320.0mm) |
