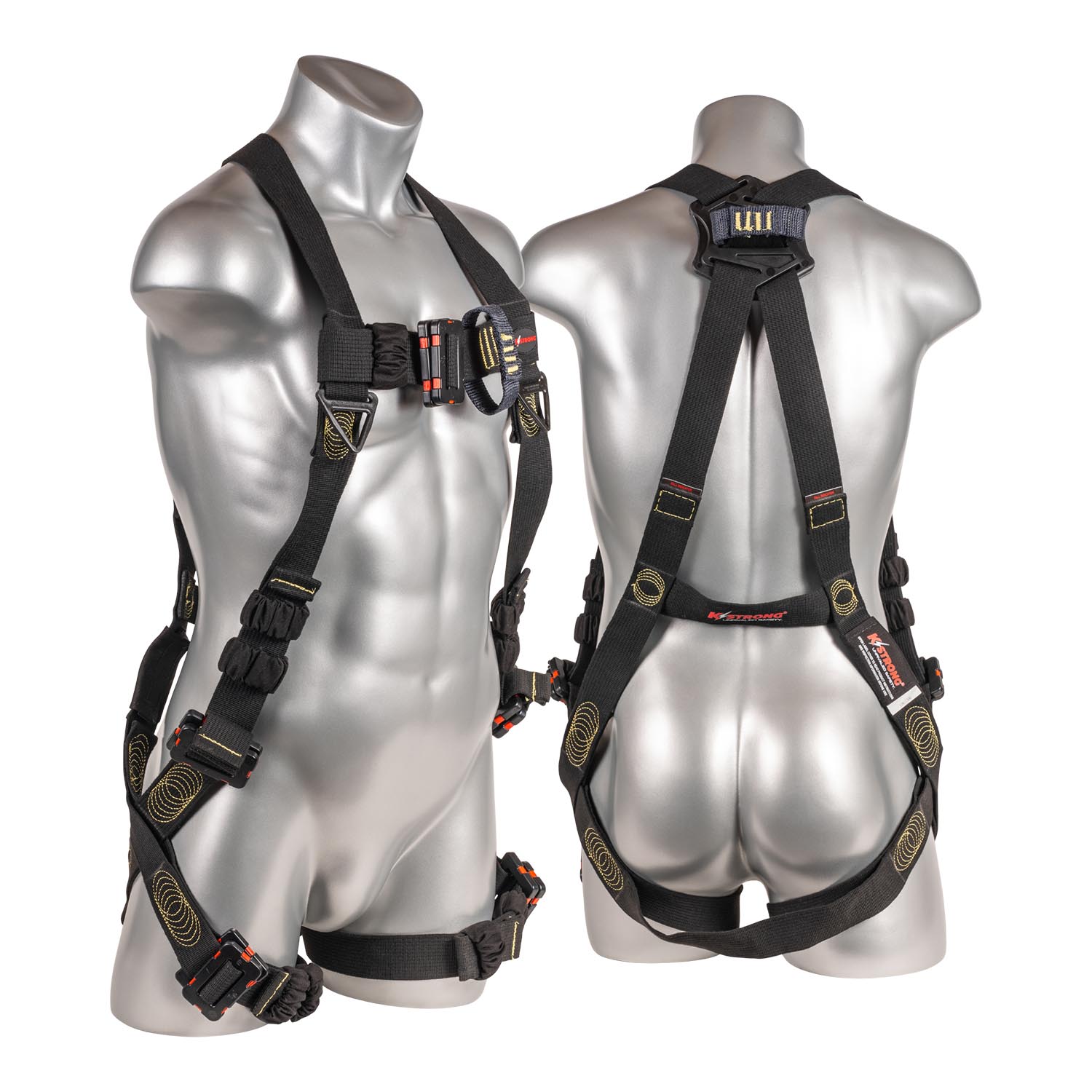

KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)

HomeBodywearFull Body HarnessesKapture™ ElementWelding (Arc Flash)KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI) - Image 2
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI) - Image 3
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI) - Image 4
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI) - Image 5
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI) - Image 6

KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)

×

Find Online

Buy Now
Buy Now
Buy Now
Add to Wishlist
SKU: UFH10711P Categories: , , ,

Description

Key Features

DESIGN:

  • 5-point adjustable full body harness made with arc flash webbing
  • Shoulder straps with dielectric friction buckles for easy adjustment
  • Chest straps & leg straps with dielectric pass thru buckles for easy adjustment
  • One back textile loop at dorsal for fall arrest
  • One front textile loop for ladder climbing

WEBBING:

Material: Aramid
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.

STITCHING THREAD:

Material: Kevlar

METAL COMPONENT:

Material: Alloy Steel core with reinforced Polymer
Finish: Black Moulded

RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.11-2021, ASTM F887-20

WEIGHT:

Model Size Weight
UFH10711P(S-L) Small to
Large		 4.63 lbs. ± 0.02 lbs. (2100 gm ±10 gm)
UFH10711P(L-XL) Large to
X-Large		 4.85 lbs. ± 0.02 lbs. (2199 gm ±10 gm)

Downloads

KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)
KStrong® Kapture™ Element Arc Flash Rated 5-Point Full Body Harness, Web Loop Dorsal and Front D-rings, Mating Buckle Legs and Chest (ANSI)

Download Image

Download Image

Download Techsheet

Download Manual

Download Declaration of Conformity

Additional information

Compliance

ANSI Compliant, ASTM Compliant, OSHA Compliant
Special Application

Arc Flash
Buckles and Adjusters

Mating Buckle Legs and Chest
Configuration

,

D-ring Connecting Elements

Dorsal and Sternal Loop, Dorsal Loop
Harness Leg Buckles

Mating Buckle (Pass-thru)
Harness Brand

Kapture™ Element
