Description

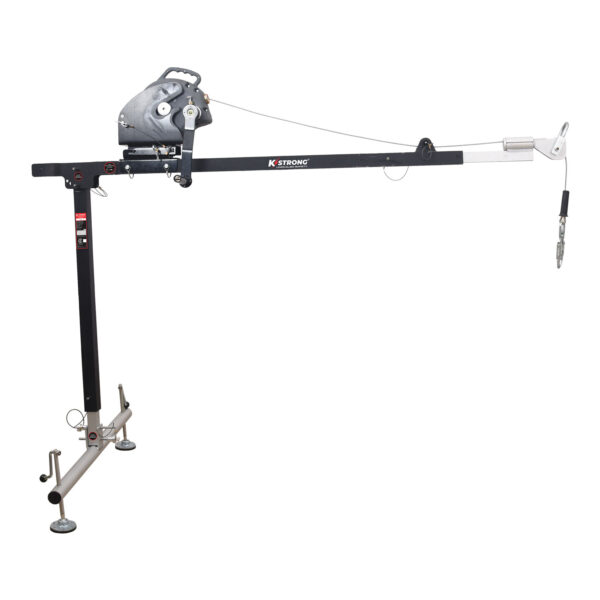

Side Entry Davit Assembly with Retrieval Device Bracket (High Strength Aluminum Alloy) (UFT551080)
Key Features
DESIGN:
- Ideal choice for access of confined space with help of Winches / Retrieval units, where regular anchorage system could not be used due to limited height constrained.
- Three adjustment points make it versatile to be used in various locations where anchor is at low level.
- Swivel eye at the end of cantilever to be attached to rated anchor point.
- Base with swivel pads for making the system level with the ground.
- Comes with preinstalled mounting brackets which are compatible with KStrong winches or retrieval blocks.
- It can be use for side gantry holes of confined space.
- Can also be used in both vertical & horizontal confined space entries.
PHYSICAL PARAMETERS:
Body made up of high strength Aluminum Alloy
MAXIMUM LOAD CAPACITY:
1102 lbs. (500kgs)
FINISH:
Powder Coated in dual color – Black & Grey
WEIGHT:
28.63 lbs. ± 0.22 lbs. (12.99kgs ± 0.10kgs)
SYSTEM STRENGTH:
15 kN
RELEVANT STANDARDS:
Meets or Exceeds EN 795: 2012 Type A
60′ Wire Cable 3-Way Rescue Retrieval SRL-R (UFS310060R)
Key Features
DESIGN:
- Retrieval fall arrester block in polymer casing coupled with hoisting winch to enable easy retrieval of victim.
- The locking pin on the side of the casing at the base of the handle allows this dual system to work in independent fall arrest & winch modes.
LENGTH:
60 ft.
PHYSICAL PARAMETERS:
- Robust & durable plastic casing
- Has swivel anchorage eye at anchorage end
- Convenient inbuilt carry handle at anchorage end
- Steel swivel snap hook with load indicator at retractable end – gate strength 3600 lbs. (1633 kg)
- Galvanized steel wire rope
CABLE:
Material: Galvanized Steel Wire Rope Ø3/16 Inches
MINIMUM BREAKING STRENGTH:
3400 lbs. (1542 kg)
WEIGHT:
22.38 lbs. ± 0.02 lbs. (10151 gm ± 10 gm)
WEIGHT:
196.70 lbs ± 0.22 lbs (89.22kgs ± 0.10kgs).
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.14-2021 Class 1
