Description
Key Features
DESIGN:

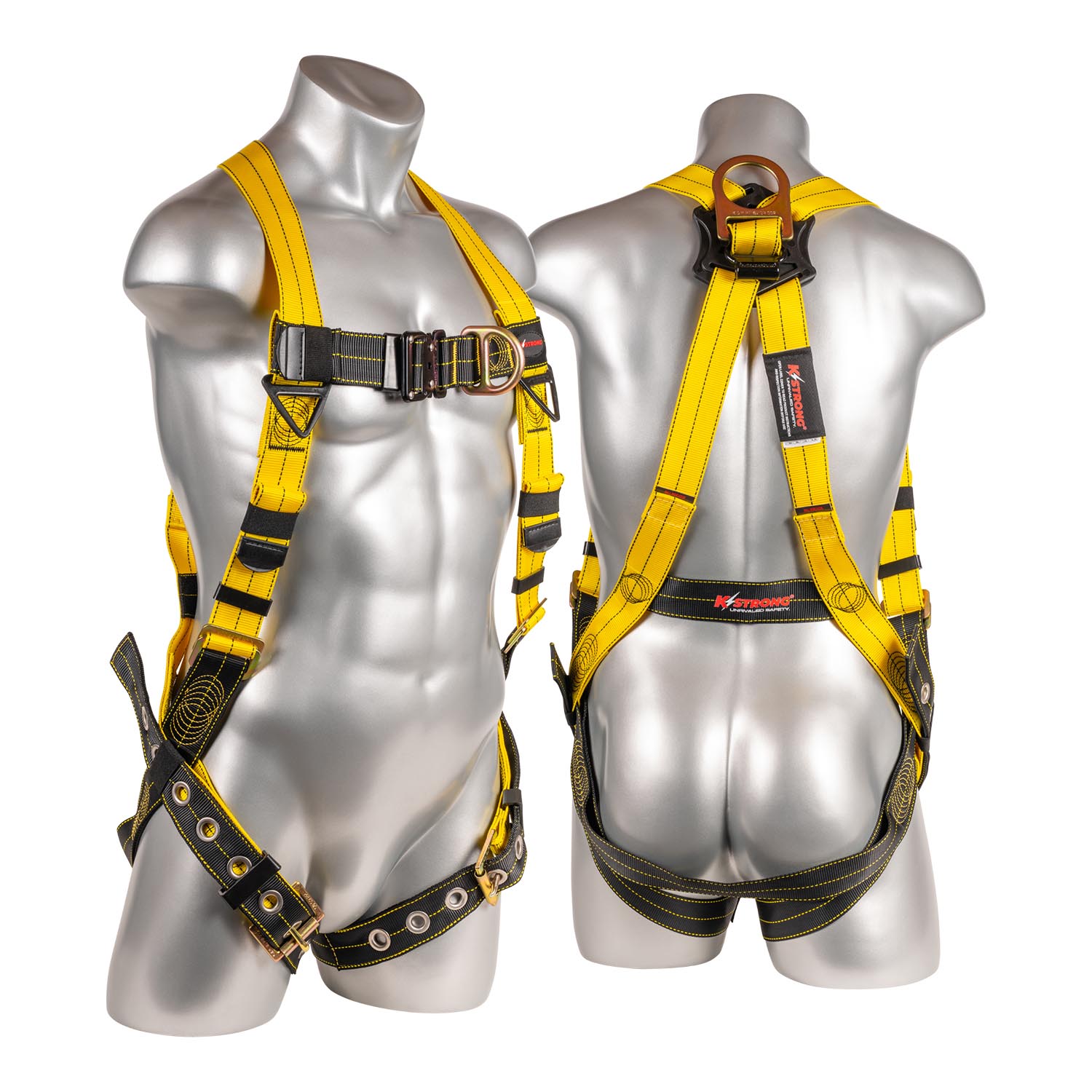

- 5-Point adjustable full body harness with grommeted leg straps and quick connect chest
- Constructed from unique polyester webbing with specialized coating that repels oil, dust, and water
- One dorsal attachment enhanced D-ring Plus™ and one sternal D-ring for fall arrest
- Adjustable shoulder, leg & chest straps
- Equipped with sub-pelvic strap
WEBBING:
Material: Polyester with Specialized Coating
Width: 1.73 in. ± 0.04 in. (44mm ± 1mm)
Breaking Strength: 5000 lbs.
STITCHING THREAD:
Material: High-tenacity Polyester
METAL COMPONENT:
Material: Alloy Steel; Finish: Golden Yellow Galvanized
Finish (PB011): PCB
CAPACITY RANGE:
ANSI: 130 – 310 lbs.
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.11-2014
WEIGHT:
| Model | Size | Weight |
|---|---|---|
| UFH10811GQ(S-M) | Small to Medium |
3.64 lbs. ± 0.02 lbs. (1650 gm ±10 gm) |
| UFH10811GQ(M-L) | Medium to Large |
3.75 lbs. ± 0.02 lbs. (1700 gm ±10 gm) |
| UFH10811GQ(L-XL) | Large to X-Large |
3.86 lbs. ± 0.02 lbs. (1750 gm ±10 gm) |
| UFH10811GQ(XL-2XL) | X-Large to 2XL |
3.97 lbs. ± 0.02 lbs. (1800 gm ±10 gm) |
