Description
Key Features
DESIGN:

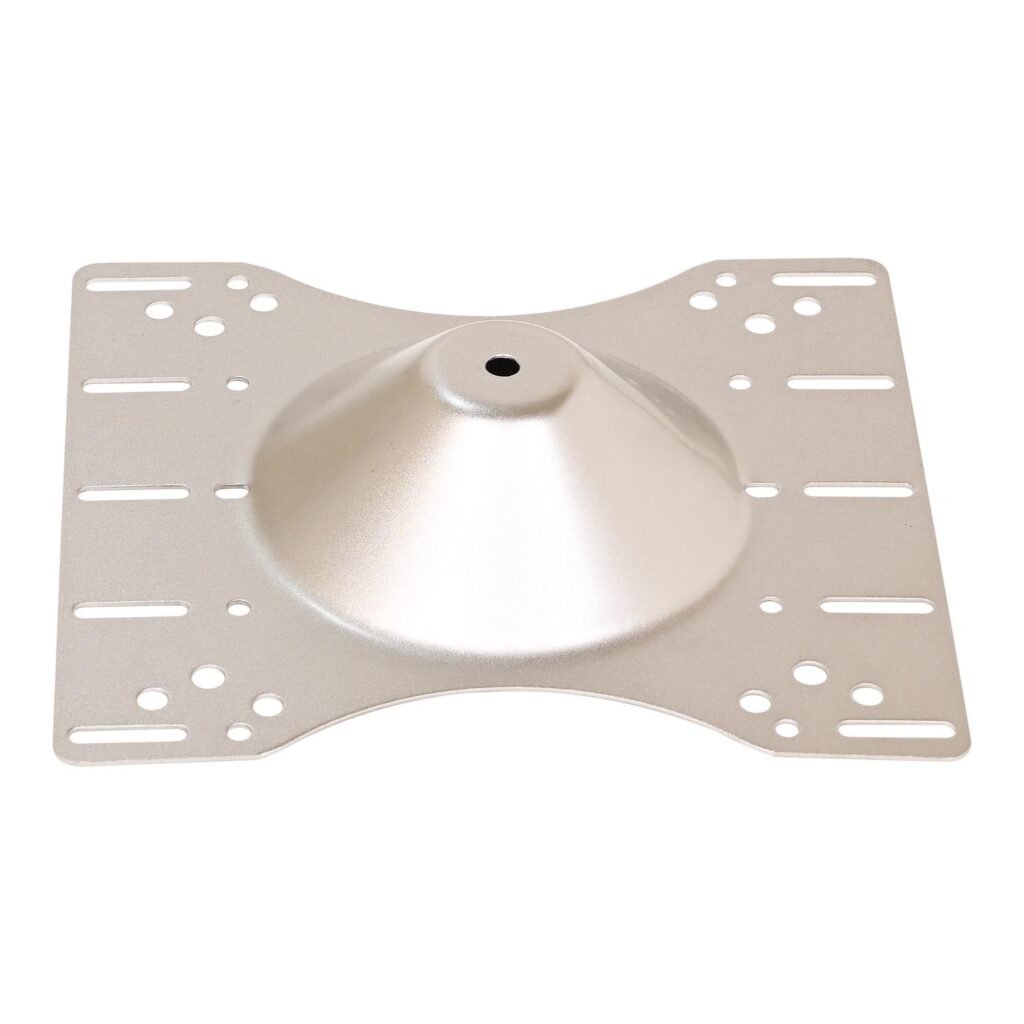

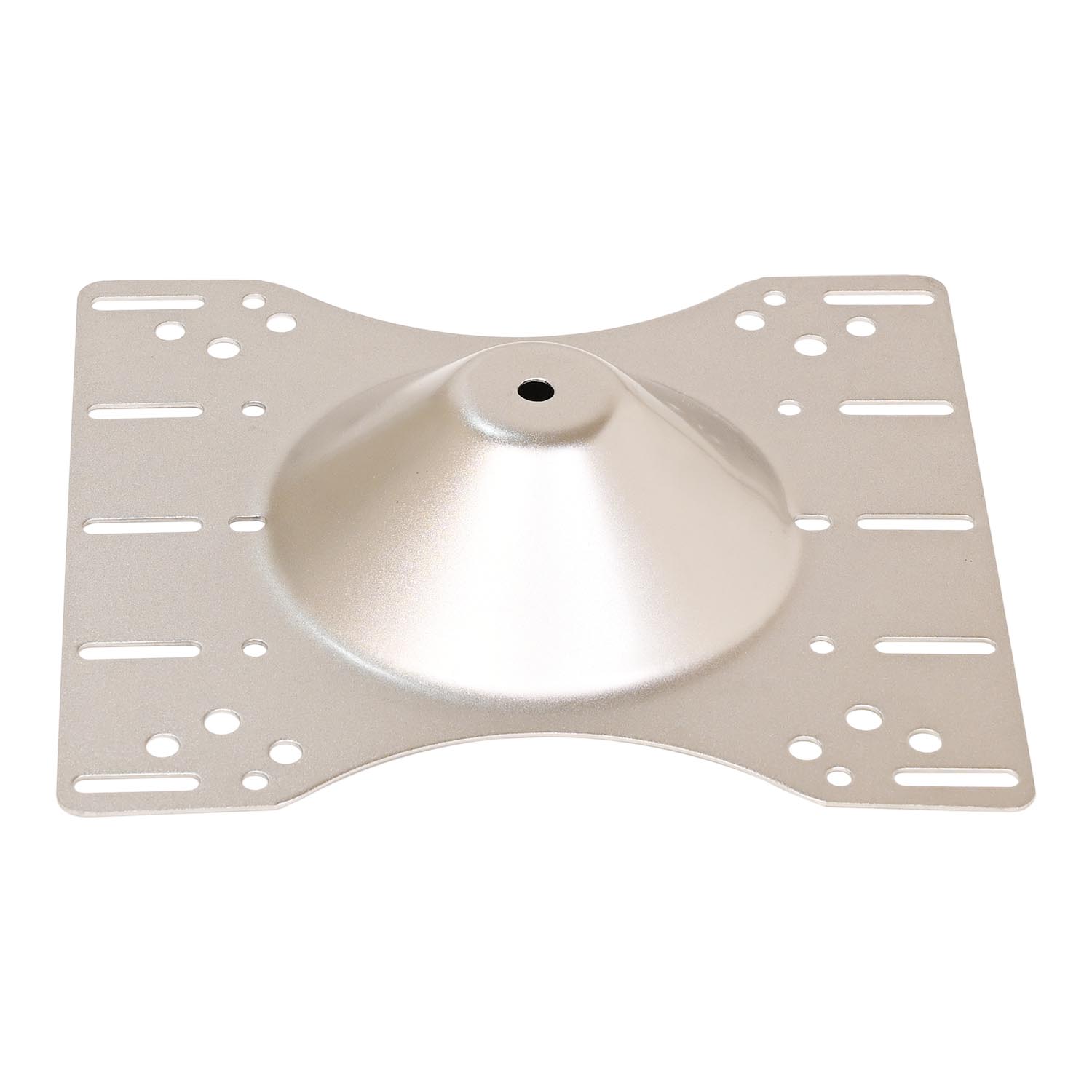

- Anchor base plate designed to be fixed on the trapezoidal roof with help of rivets
- It is compatible with below mentioned pitch from 9.41” (239mm) to 12.01” (305mm) on trapezoidal sheets
MATERIAL:
Stainless Steel – 316
FINISH:
Electropolished / E Coated
MINIMUM BREAKING STRENGTH:
15 kN
WEIGHT:
3.04 lbs. ± 0.04 lbs. (1.38kg ± 0.02kg)
RELEVANT STANDARDS:
Meets or Exceeds EN795 : 2012 Type A, AS/NZS 5532:2013 & TS16415 : 2013 TYPE A
