Description

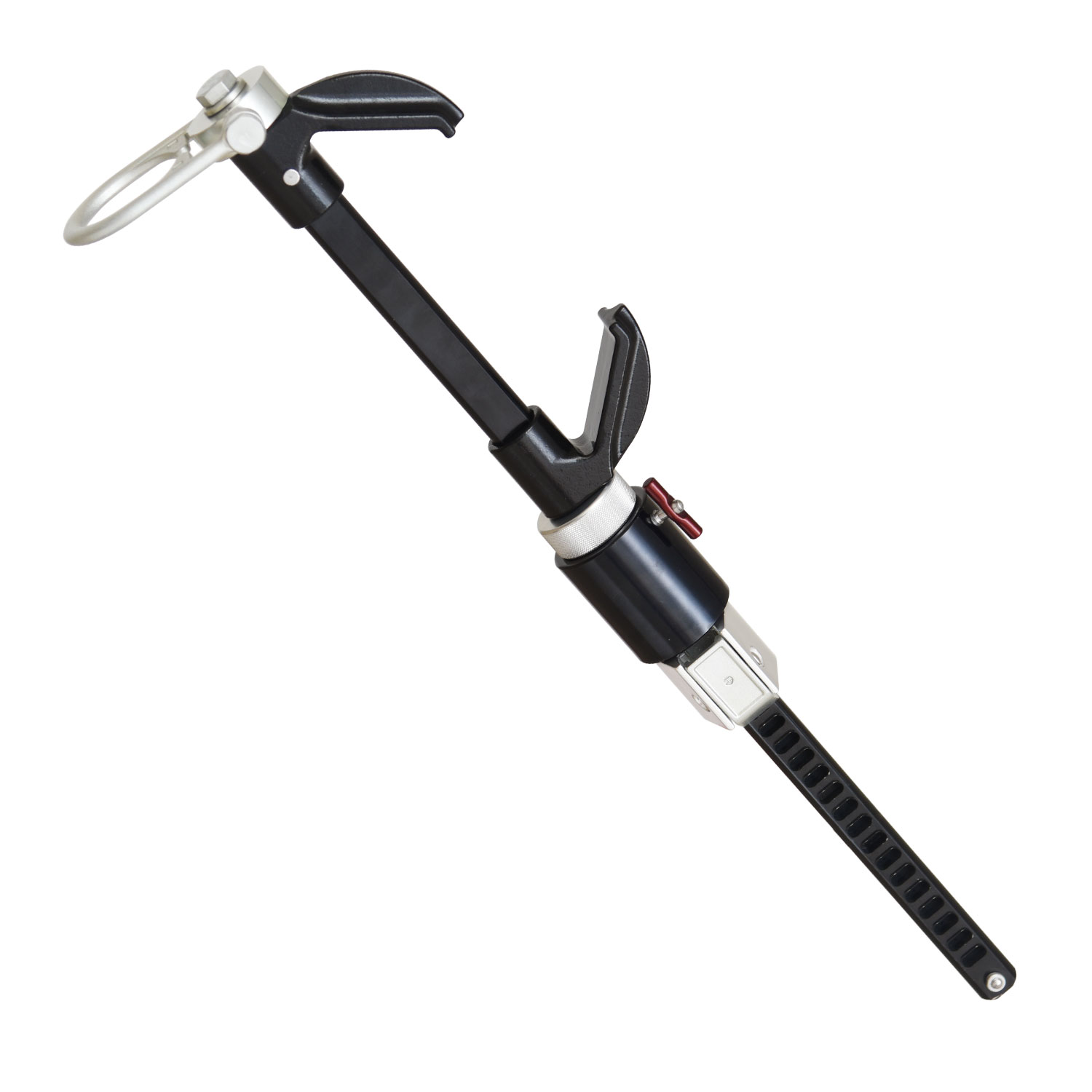

Column Mount Vertical Beam Anchor (Adjustable)
Key Features
DESIGN:
- Beam Anchor is designed to clamp vertically to create a fixed anchor point.
- It can be easily fitted and removed using the adjustment nut and locking pin.
- Beam anchor is connected with a swivel D-Ring, which rotates 360°.
COMPATIBLE WITH MINIMUM FLANGE WIDTH:
3.93″ (100mm)
COMPATIBLE WITH MAXIMUM FLANGE WIDTH:
13.66” (340mm)
MATERIAL:
Aluminum Alloy & Alloy Steel
FINISH:
Colored Anodized & ED Coated
STATIC STRENGTH:
25 kN.
WEIGHT:
6.28 lbs. ± 0.04 lbs. (2.85kg ± 0.02kg)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017 Type A
Welding (Arc Flash)
