KStrong, Unrivaled Safety
H-Base Davit Arm
Compare
Description
Description

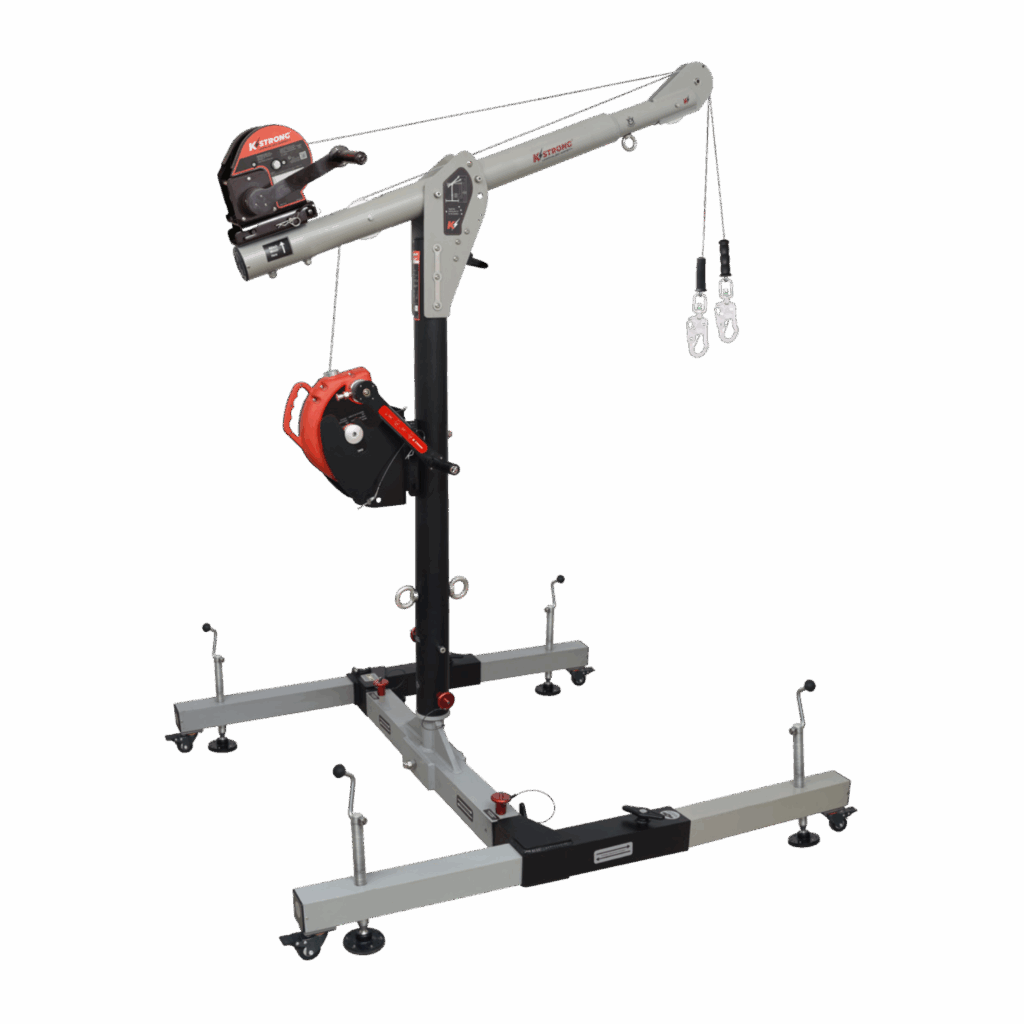

AFT751011-H-Base Davit Arm
Key Features
FEATURES:
- The Extreme H-Base Davit breaks down into five components for easy storage, transport and set-up. No tools are required for assembly.
- The modular design allows the use of various fixed and portable bases and an optional mast with extensions.
- Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement.
- An ideal choice to provide overhead anchorages in large holes of confined space.
- Foldable legs for easy transportation and installation purpose.
- Multi anchorage point for rescue purpose.
- Inbuilt swivel feature, Davit column assembly can be rotated upto 360° by removing the locking pins provided to lock column and H-Base.
MATERIAL:
High Strength and Durable Aluminium Alloy
MIN. & MAX. OPENING OF H BASE:
Ø1100 mm – Ø1510 mm
MAXIMUM LOAD CAPACITY:
500 kgs
FINISH:
ED Coated
SYSTEM STRENGTH:
15kN
CERTIFICATION:
EN 795:2012 Type B & AS/NZS 5532:2013
WEIGHT:
62.56kgs ± 0.10kgs
