EVAC-R 40M RESCUE KIT

SKU: AFX209070(40) Categories: Rescue Kits, Rope Access and Rescue

Description

AFX209070(40)-EVAC-R 40M RESCUE KIT

The KStrong EVAC-R Descender and Rescue device with lifting function is an Automatic and controlled descent for lifting or lowering of injured person. With the added benefit of attaching a powered drill
to assist in the rescue allowing the user to use in situations where you are required to raise the casualty over long distances. Alternating descending on both rope ends can be carried out to rescue more than three persons efficiently (shuttle system).

FEATURES:

Rescue from high level working platforms and require a simple rescue or evacuation solution
Hand-wheel for lifting of injured and rescuer
Easy to attach a powered drill using a 10mm Hexagonal head connector to assist in the rescue allowing the user to use in situations where you are required to raise the casualty up to 500m.
Controlled descent speed: 1m/sec (85kg) and 1.5m/sec. (170kg).
Maximum Lifting & Descent height: 500 m. Refer UIM for more details.
Brake system – Automatic, redundant brake system with 2 fly wheel brakes.
The maximum load of 285kg allows simultaneous descending of three persons from heights up to 500m.
Alternating descending on both rope ends can be carried out to rescue more than three persons efficiently (shuttle system).
Can be used with Kernmantle Rope ø 11mm, EN 1891-A (EN 341, EN 1496), ANSI Z359.4:2013 & Kernmantle Rope ø 9,6mm till ø 11mm acc. EN 1891-A (EN 12841)C

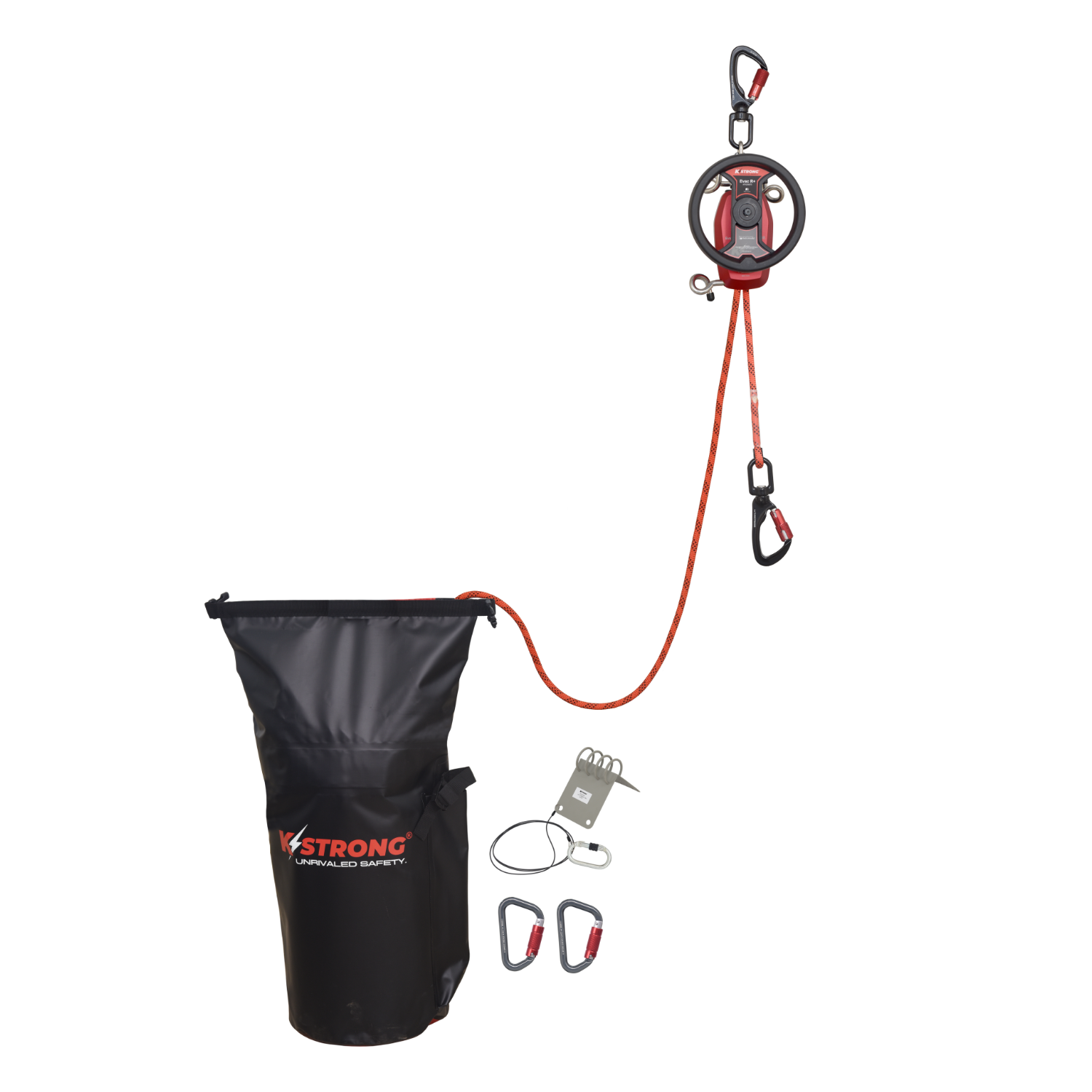

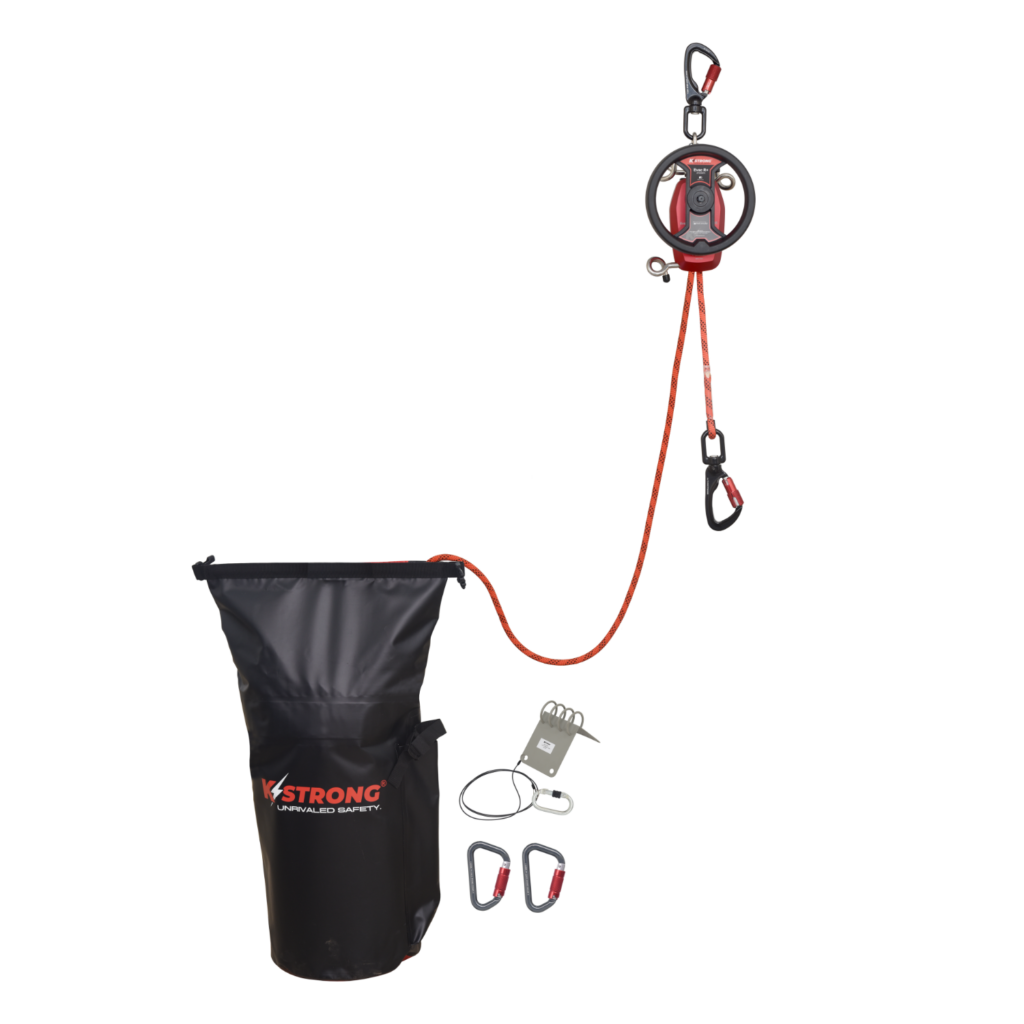

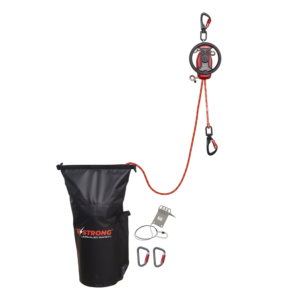

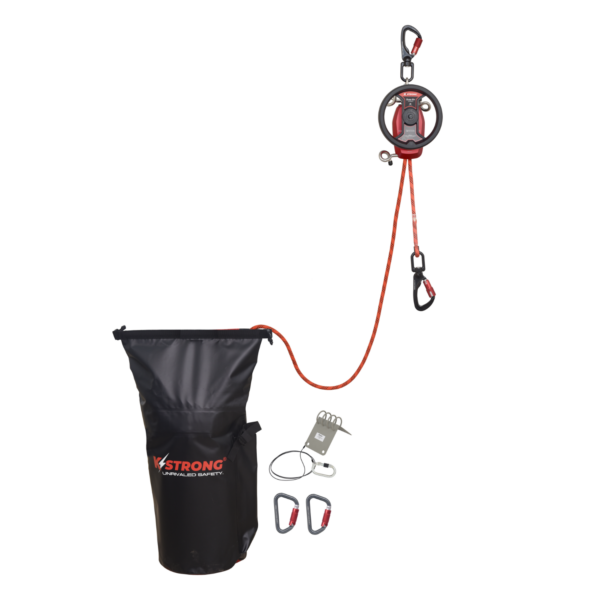

PRODUCTS IN THE KIT:

AFX209070 : EVAC-R
AFX2000105 : 10.5mm Kernmantle Semi Static Rope
AFA921515 : Webbing Anchor Straps 1.5m
AFX203001 : Edge Protector c/w 2m wire and Karabiner
AFC601415 : Aluminum Twist Lock karabiners
AFZ177150 : Rescue Bag
UFC401400 : Karabiner
