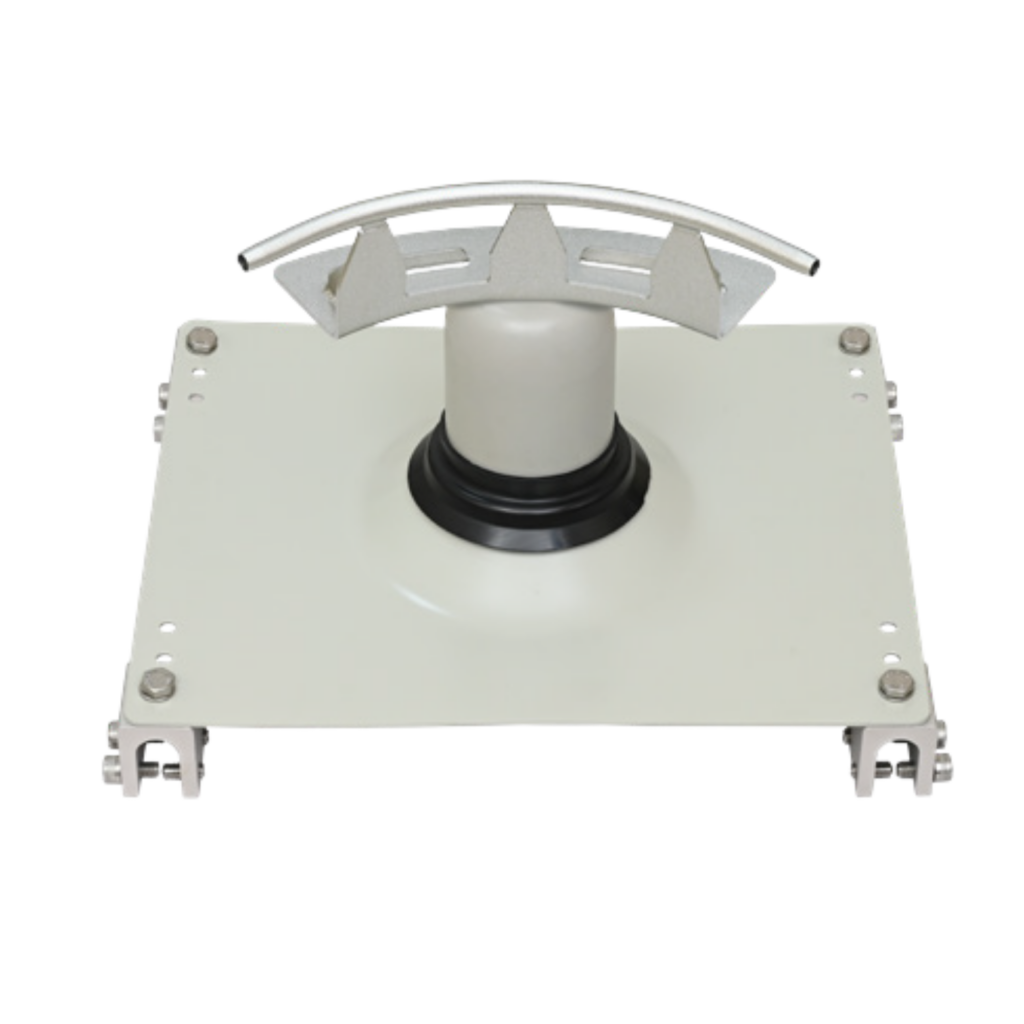

Constant Force Corner Post for Standing Seam Roof

Add to Wishlist

Description

AFA935365-Constant Force Corner Post for Standing Seam Roof

Key Features

FEATURES:

Designed with an inbuilt shock absorption mechanism which activates in th event of a fall to absorb the energy, hence leaves the roof panel intact to maintain architectural integrity.
Corner post has been designed to be installed on standing seam roof top with help of specially designed Seam Clips & fasteners.
Can be used as intermediate when a change of direction is required.
Available in following variants depending upon the angle-axis ‘X’, ‘Y’ & ‘Z’
• AFA935365(60) 60 degree
• AFA935365(90) 90 degree
• AFA935365(120) 120 degree
Easy and quick to install to suit Seam bulb up to 23.0 mm.
Suitable for Seam distances of 200mm – 400mm

METAL COMPONENTS:

Base Plate : Aluminum: ED Coated Grey
Post & Corner : 316 Stainless Steel: Polished
Seam Clamps : Aluminum: Anodized
Bolts : SS316 Grade A4-70
Minimum Breaking Strength : 15kN

CONFORMS TO:

EN 795:2012 Type A & TS 16415:2013 Type A

WEIGHT:

AFA935365(60) 5.312 kg + 0.050 kg
AFA935365(90) 5.306 kg + 0.050 kg
AFA935365(120) 5.376 kg + 0.050 kg
