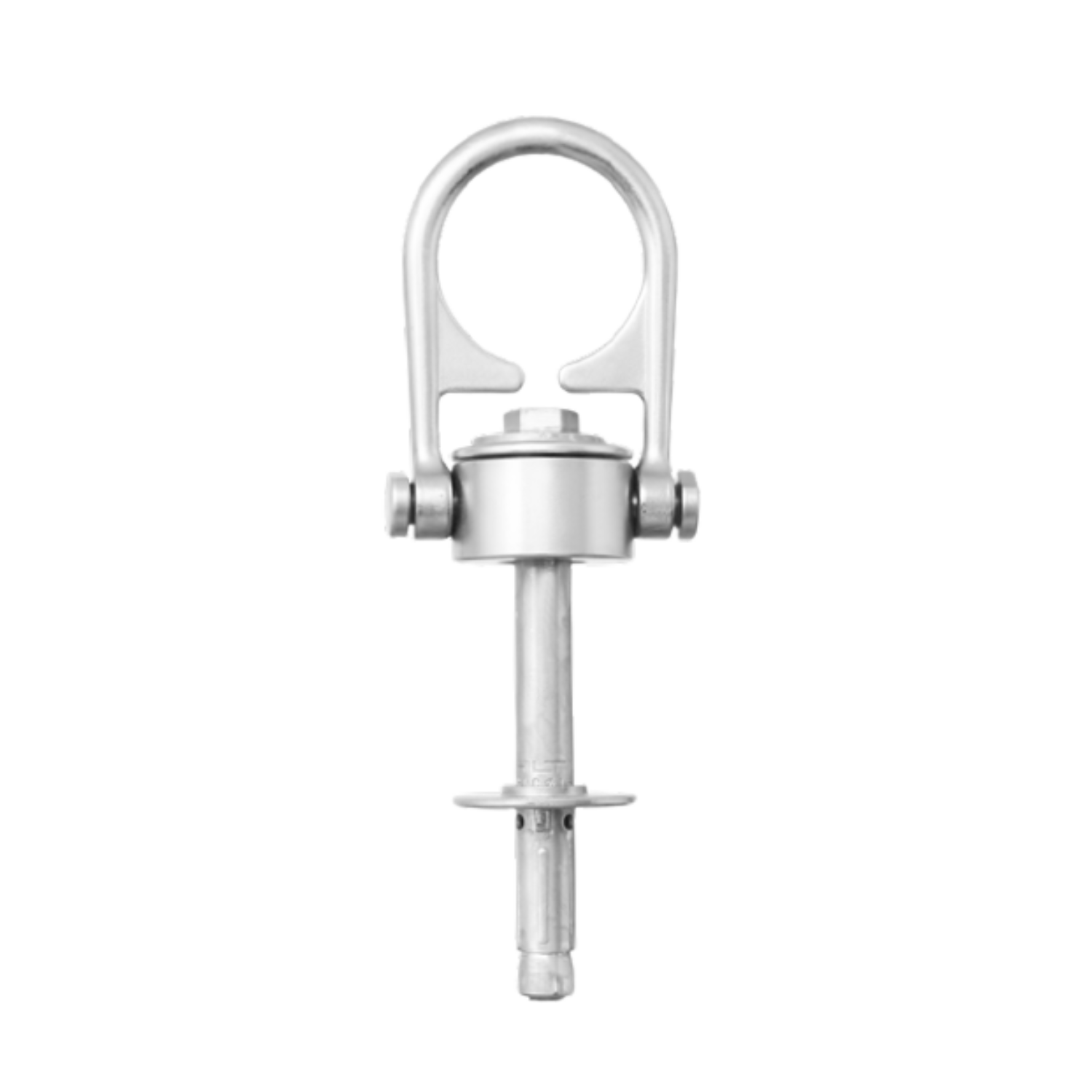

AFA930316C-Concrete 360 Degree Swivel Anchor Point

Key Features

FEATURES:

  • Anchor designed to be fixed into concrete structures.

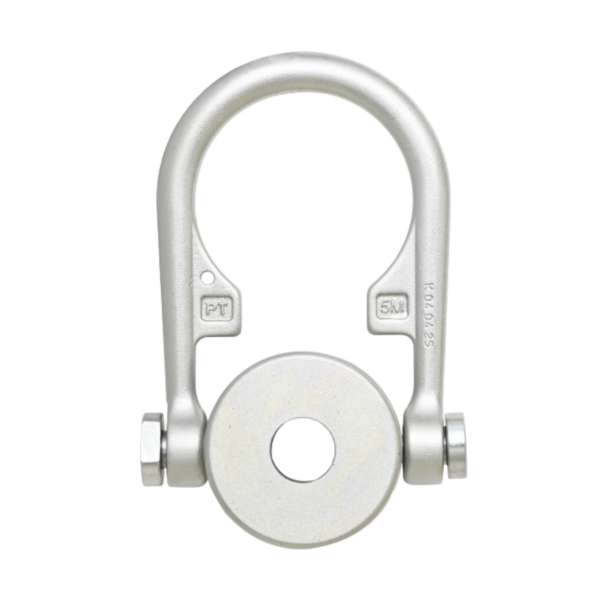

  • 360 degree Swivel D-Ring Anchor point that can Pivot or Flip 180 degrees to self align with direction of load.
  • AFA930316C For Concrete structures use M16 Bolt
  • Chemical Adhesive Capsule and bolt is not supplied.
  • Refer Hilti HVU for installation guide.

MATERIAL:

Swivel Anchor : High Strength Alloy Steel – Galvanized
Bolt – Concrete : SS316 M16

SYSTEM STRENGTH:

44kN MBS

CONFORMS TO:

EN795:2012 Type A, ANSI Z359.18-2017 Type A & AS/NZS 5532:2013

WEIGHT:

0.740 kg ± 0.020 kg.
