Description
Key Features
INCLUDES:

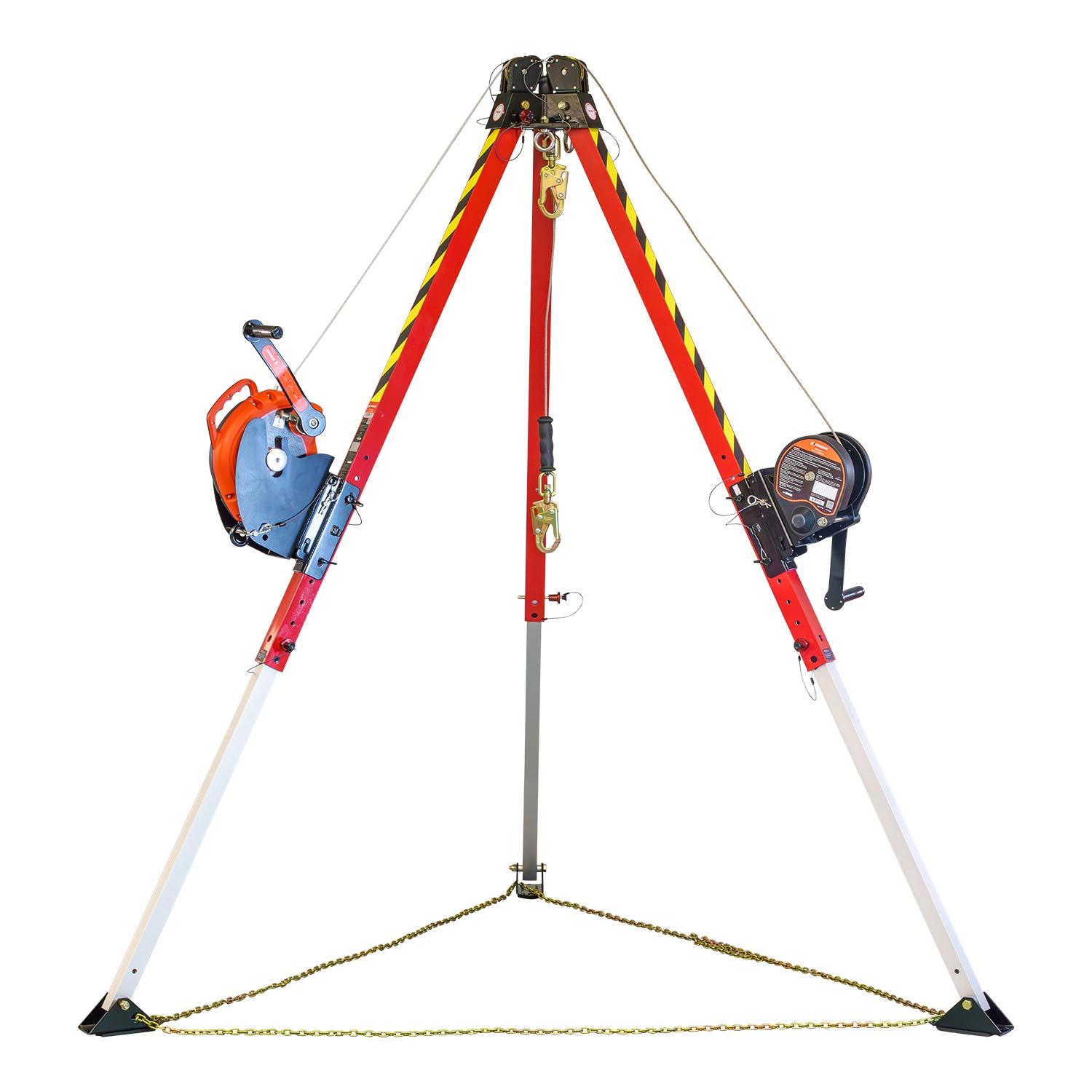

- Tripod (UFT510010)
- 60 ft. 3-way Rescue Retrieval SRL-R with Mounting Bracket (UFS310060R and UFT510010B)
- 60 ft. Material / Personnel Winch (UFT530060)
- Storage Bag for Tripod (UFZ810020)
MEGAPOD DESIGN:
- Adjustable height from 76.69”(1.95m) to 115.35”(2.93m) from ground level
- Adjustment achieved by sliding telescopic legs
- Locking pins attached by SS cables.
- Securely connected eyebolts (2) to be used for connection to personal protective equipment
- Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously
- Preinstalled mounting brackets on the legs for installation of compatible winch and retrieval system
LOAD CAPACITY:
310 lbs. (500kg)
MEGAPOD LEGS:
Material: Aluminum Alloy
Finish: Anodized / Powder Coating
HEAD:
Material: Aluminum Alloy
Finish: Powder Coated Black
LOCKING PINS:
Material: Stainless Steel
Finish: Electropolished
WEIGHT:
52.42 lbs. (23.78kg) ± 0.22 lbs. (0.10kg)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017 TYPE A
