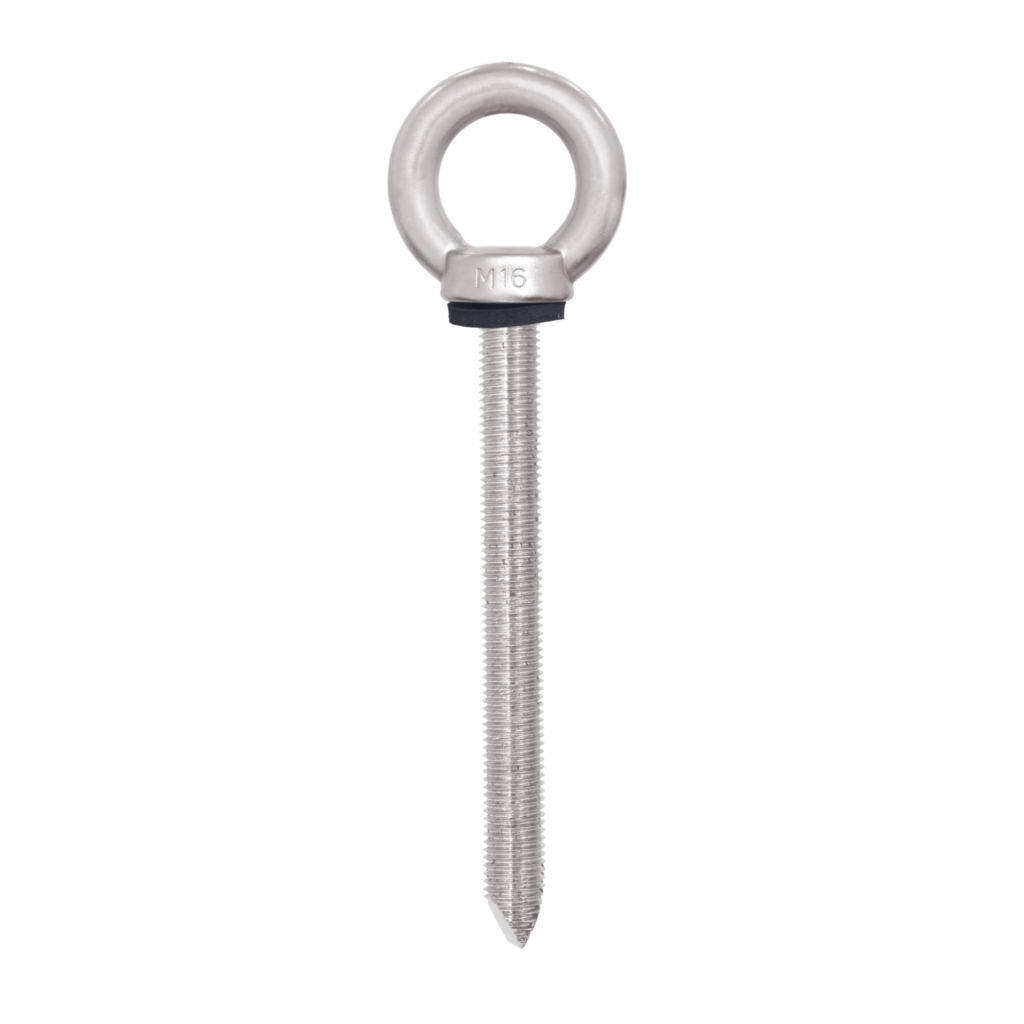

One Piece Concrete Anchor SS M16x100mm

SKU: AFA935508(100) Categories: Engineered Single Point Anchors, Engineered Systems

Description

AFA935508(100)-One Piece Concrete Anchor SS M16x100mm

The KStrong One Piece Concrete Anchor SS M16x100mm AFA935508(100) is designed for use as a Single Point Anchor by a Single User in Fall Restraint, Fall Arrest or Abseiling

Key Features

FEATURES:

May be fixed to concrete using chemical adhesive such as Hilti RE-100 or RE-500. Chemical adhesive not included. See User Instruction Manual (UIM) for minimum fixing specifications.
Suitable for Fall Restraint, Fall Arrest and Abseil.
Maximum 1 user when used as a Single Point Anchor.
Limited multidirectional use, and may not exceed 20deg loading in tension, when installed into concrete.
This product should not deform under 15kN loads when used as a Single Point Anchor.
Anchorage Structural Requirement for this product when used as a Single Point Anchor is 15kN.
