AFA945024-T-Line 24M

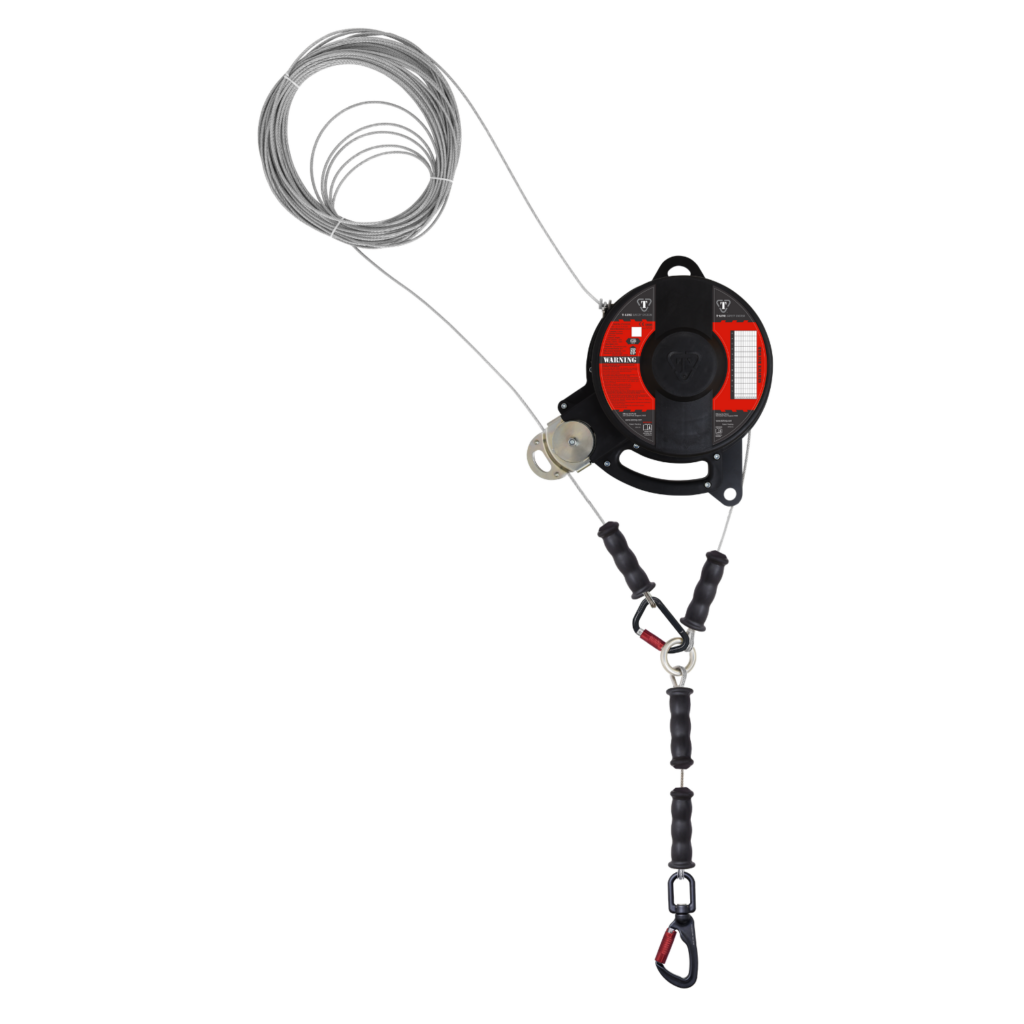

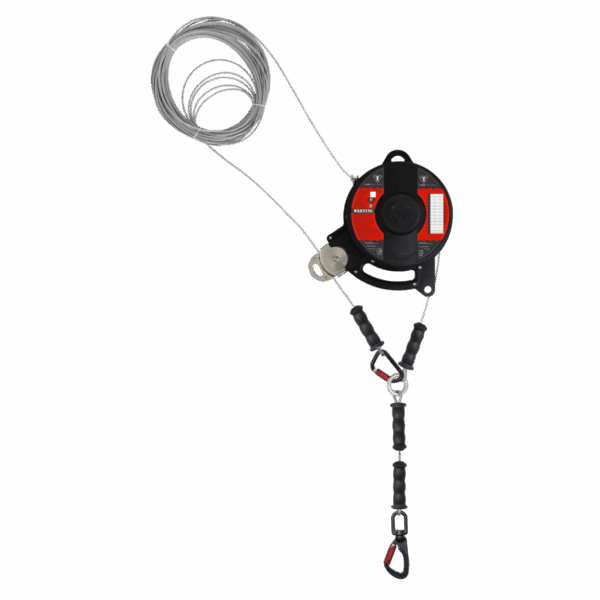

The KStrong T-Line 24m AFA945024 is designed for use as an overhead twin lifeline fall arrest system by a Single User in Fall Arrest. Its two independent self-retracting lifelines let the user move freely, both horizontally and vertically, across spans of 13m to 24m, while minimising pendulum swing and fall arrest distance.

FEATURES:

  • Supplied with 2 x T-Line Clevis Anchors (AFA945017), for mounting overhead to structural steel or a concrete soffit. T-Line Beam Clamp Anchors (AFA945026), sold separately, may be used to mount onto I-beams without drilling or welding. No other anchorage devices may be used. See User Instruction Manual (UIM) for installation requirements.
  • Suitable for Fall Arrest.
  • Maximum 1 user, with a total mass of 60kg to 140kg.
  • May be used in Twin-Line or V-Line configuration, or in Single Line Mode for vertical access directly below the T-Line unit.
  • Galvanised steel lifelines – for indoor installation and use only.
  • Anchorage Structural Requirement for this product is 23kN at each anchorage.
  • Horizontal span of 13m to 24m. Anchorage height above the working platform: min. 0m; max. Twin-Line 26m at a 13m span, reducing to 18m at a 24m span; max. V-Line 16m at a 13m span, reducing to 7m at a 24m span.
  • Maximum fall arrest force on the user 6kN. Fall clearance required below the working platform at maximum span: V-Line 2.6m, Twin-Line 4.9m.
  • Ø4.5mm 7×19 galvanised steel wire rope lifelines – main lifeline 30m, pulley lifeline 55m.

MATERIAL:

High strength polymer casing, Ø4.5mm 7×19 galvanised steel wire rope lifelines, aluminium alloy karabiners and O-ring.

Supplied with 2 x T-Line Clevis Anchors (AFA945017).

WEIGHT:

21.5kg

RELEVANT STANDARDS:

Conforms to EN 360:2023 and EN 1496:2017 Class B.

Meets the Requirements of AS/NZS 1891.4:2025.
