Removable Concrete Anchor – 2 PART Lock Swivel D-Ring & stud

×

Find Online

[wpsl]
Compare
SKU: AFA930310 Categories: ,
Description

Description

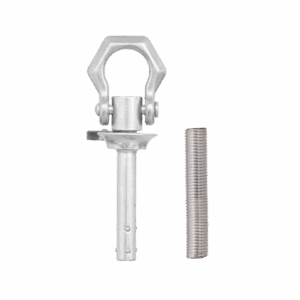

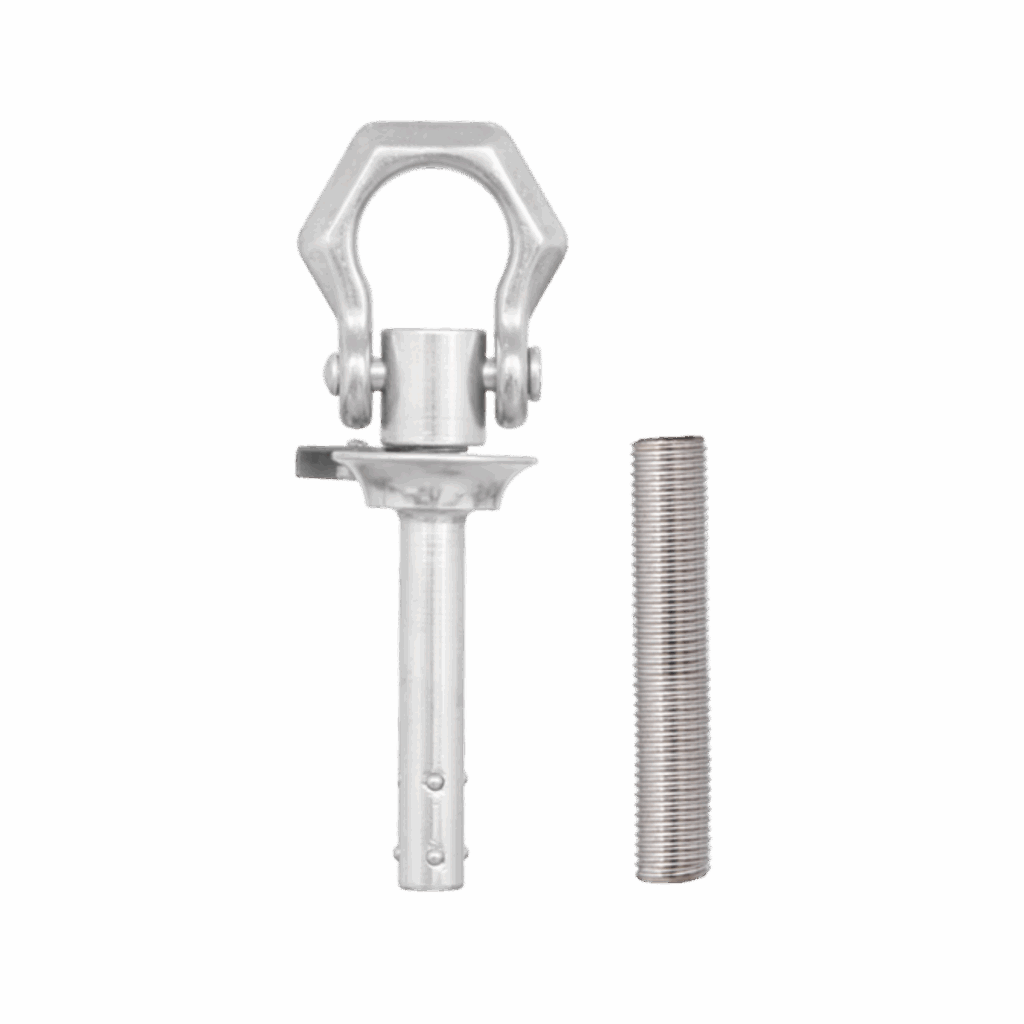

AFA930310-Removable Concrete Anchor – 2 PART Lock Swivel D-Ring & stud

Key Features

FEATURES:

  • Suitable for vertical, horizontal and Overhead applications.
  • Simply insert Swivel D-Ring Pin and lock into the threaded Stud
  • For use as an anchorage point for fall protection equipment
  • The Swivel Eye pin can be removed and reused in another threaded Stud.
  • When a Stud is not in use, a cap covers the recess.
  • Install into Concrete with a minimum thickness of 150mm, drill hole size is 20mm x 110mm.
  • Used with adhesive capsule HVU M20x 170 code 256695

MATERIAL:

Anchorage Eye : Alloy Steel
Threaded Stud : 316 Stainless Steel

MINIMUM BREAKING STRENGTH:

15kN in all three directions

CONFORMS TO:

EN 795:2012 Type A & AS/NZS 5532:2013

WEIGHT:

349gm + 10 gm
