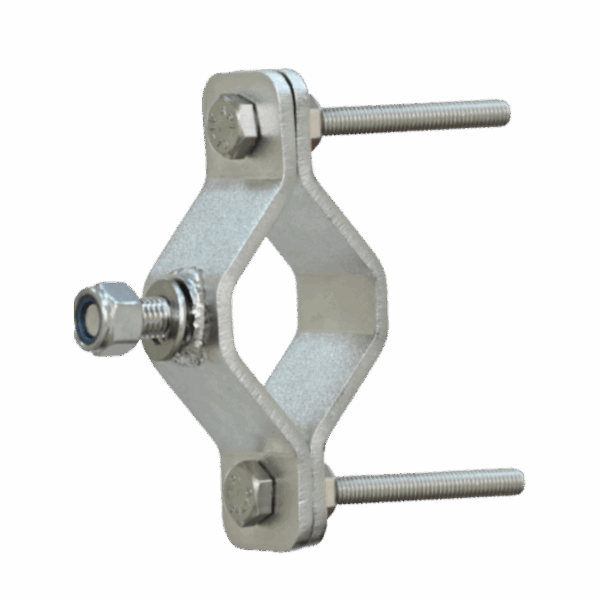

AFF113735(M)- Pipe Mounting Bracket Suit 50MM-65MM DIA
Key Features
FEATURES:
- Mounting Brackets are provided to install the anchorage line on
- Horizontal Pipe (Hand Rails) and Vertical Ladder Rungs.
- Suitable to attach the AFF113710 Extremity Anchor and Intermediate Bracket.
- The brackets can be used for anchorage point on a rung of a Ladder.
- Simple bolt to the pipe by using two bolts connecting the two Plates
- Compatible Rung Diameter: Ø50.0mm to Ø65.0mm.
- Not to be used as a single end anchorage for wire cable systems.
MATERIAL:
Brackets : 316 Stainless Steel
Bolts : Stainless Steel A4/70
Washers & Nut : Stainless Steel A4
FINISH:
Electro Polished
BREAKING STRENGTH:
36kN
CONFORMS TO:
EN795:2002 Type C & TS16415:2013
WEIGHT:
514.0 gms ± 10.0 gms
