Davit Mast

×

Find Online

[wpsl]
Compare
SKU: AFT756201 Categories: ,
Description

Description

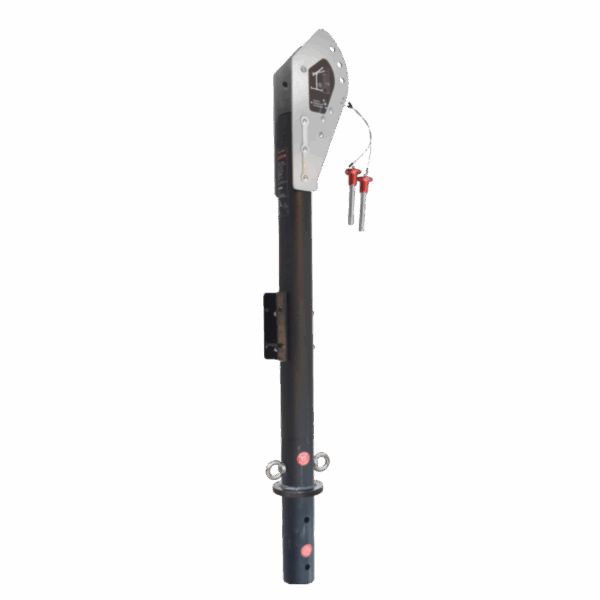

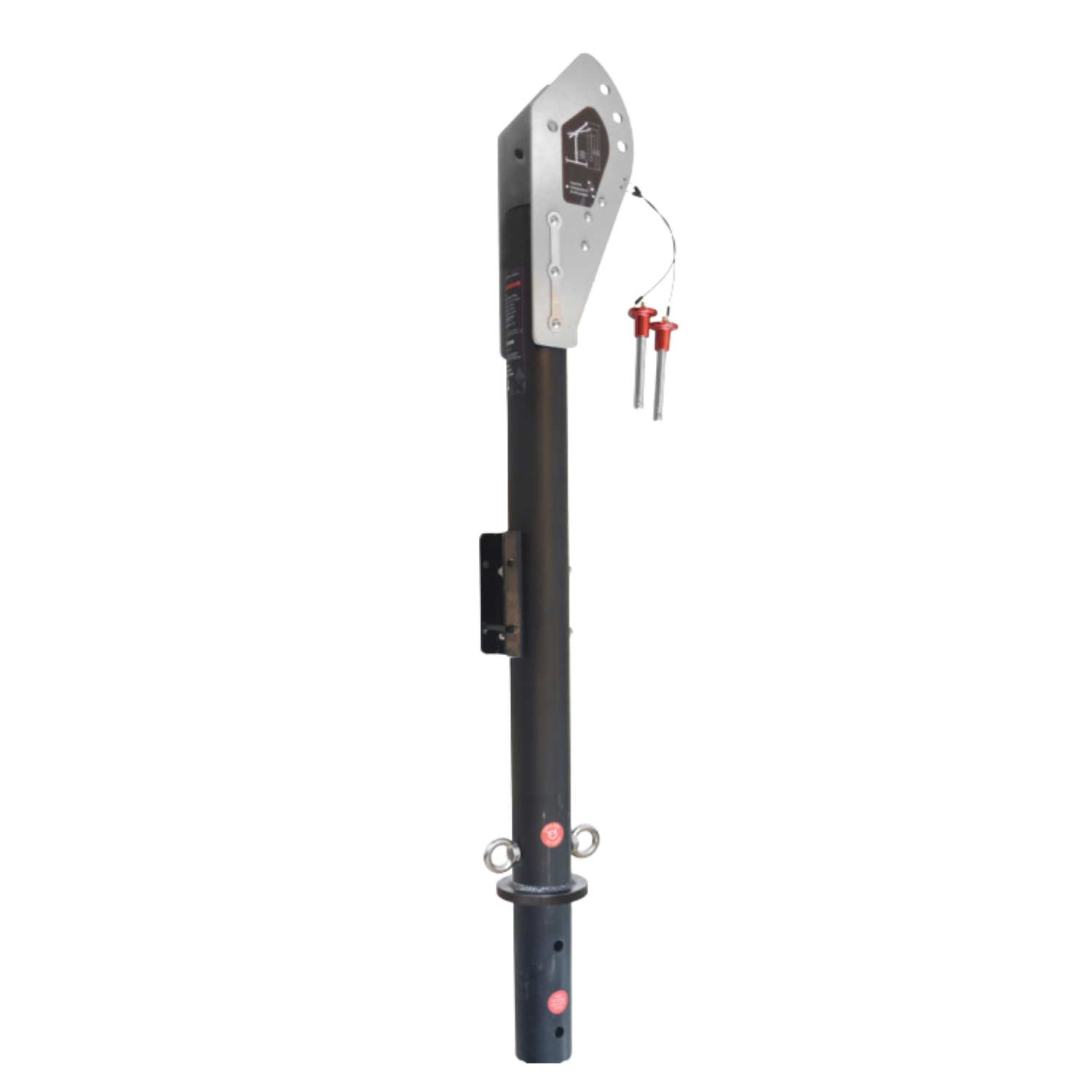

AFT756201-Davit Mast

Key Features

FEATURES:

  • Lower mast assembly is designed to be fixed on different
    davit system with H-Base davit, Wall/floor mounted, Hitch
    mounting davit/Concrete flush mounted davit.
  • Comes with pre installed mounting bracket which is Compatible with Retrieval blocks by using universal mounting bracket.
  • upper offset mast (BOOM) support plate is designed to
    attach the Upper offset mast with the help of locking
    pins & can be adjusted at 3 defined positions.
  • Additional eye nut is provide to use as an anchorage point
    in case of rescue.
  • Cap is provided on top of assembly to prevent from ingress
    of water and dust particle.

COMPONENTS:

Lower mast : Aluminium alloy, Powder Coated Black
Eye nut : Stainless steel, electropolished / E Coated
Mounting bracket : Alloy steel, ED coated black

WEIGHT:

18.089 kgs ± 0.20 kgs
