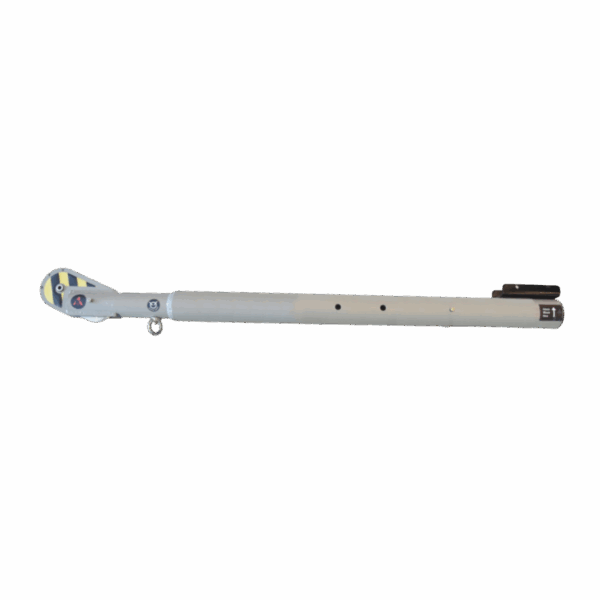

Davit Boom Cantilever Arm Assembly

×

Find Online

[wpsl]
Compare
SKU: AFT756001 Categories: ,
Description

Description

AFT756001-Davit Boom Cantilever Arm Assembly

Key Features

FEATURES:

  • Offset mast (BOOM) is designed to be fixed upon Lower
    mast assembly to make complete Davit system for
    mounted, Hitch mounting davit/Concrete flush mounted davits).
  • Upper Offset Mast can be used with Lower mast of all
    models of davit system (i.e. H-Base mounting, Wall/floor
  • Comes with pre-installed mounting bracket which is
    compatible to mount STRONG winchesAFT730020, AFT730040, AFT730042, AFT730042SS, AFT730120, AFT730135
  • Comes with pulleys, which are used for smooth movement
    of rope / wire used for lowering / lifting or rescue.
  • Additional eye nut is provide to use as an anchorage
    confined space entry.

COMPONENTS:

Mast arm & Big pulley : Aluminium alloy, ED coated grey
Small pulley & Eye nut : Stainless steel, electropolished / E Coated
Mounting bracket : Alloy steel, ED coated black

SYSTEM STRENGTH:

15 kN

WEIGHT:

12.47 kgs ± 0.20 kgs
