Detent Concrete Anchor and SS Ferrule Set

SKU: AFA930310 Categories: Engineered Single Point Anchors, Engineered Systems

Description

AFA930310-Detent Concrete Anchor and SS Ferrule Set

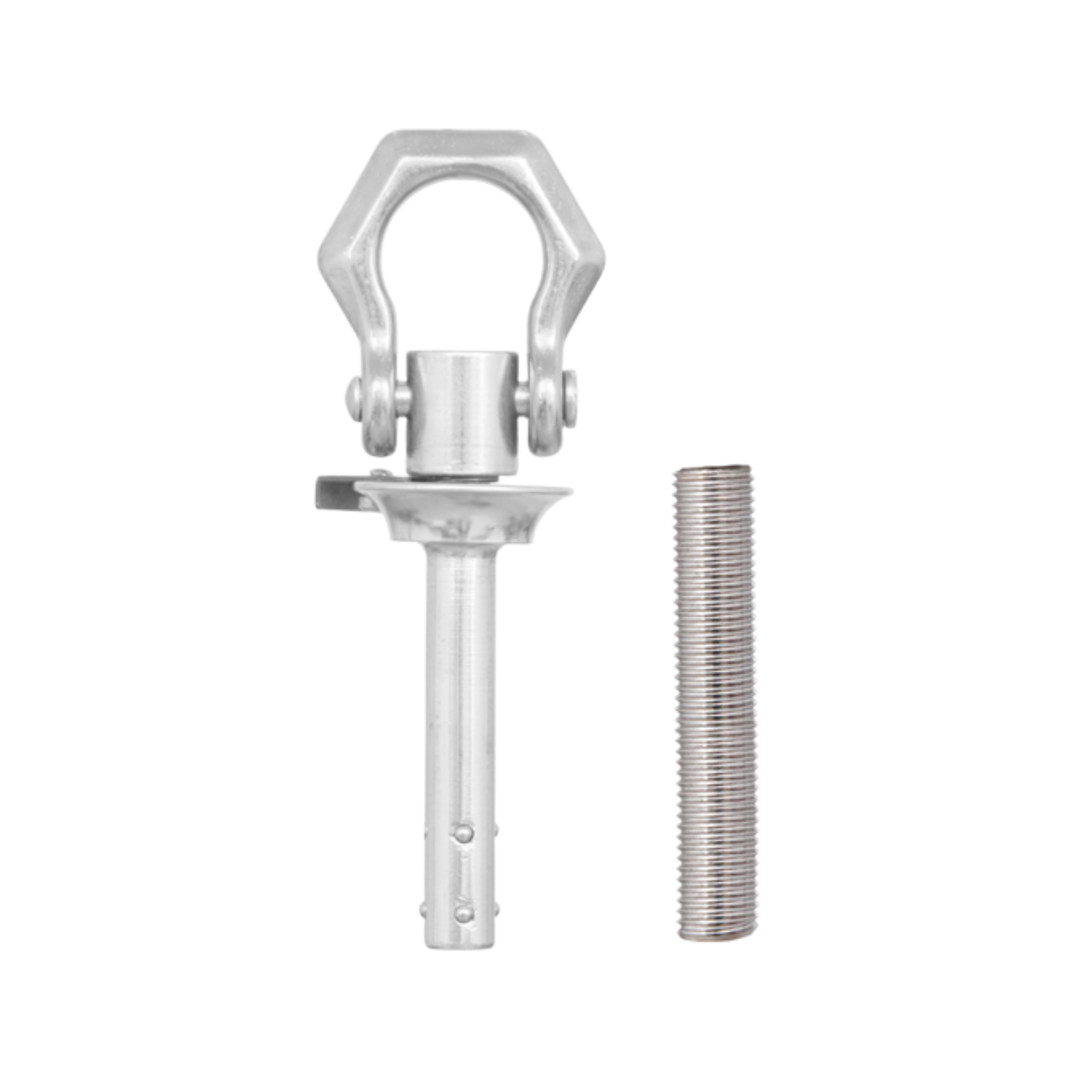

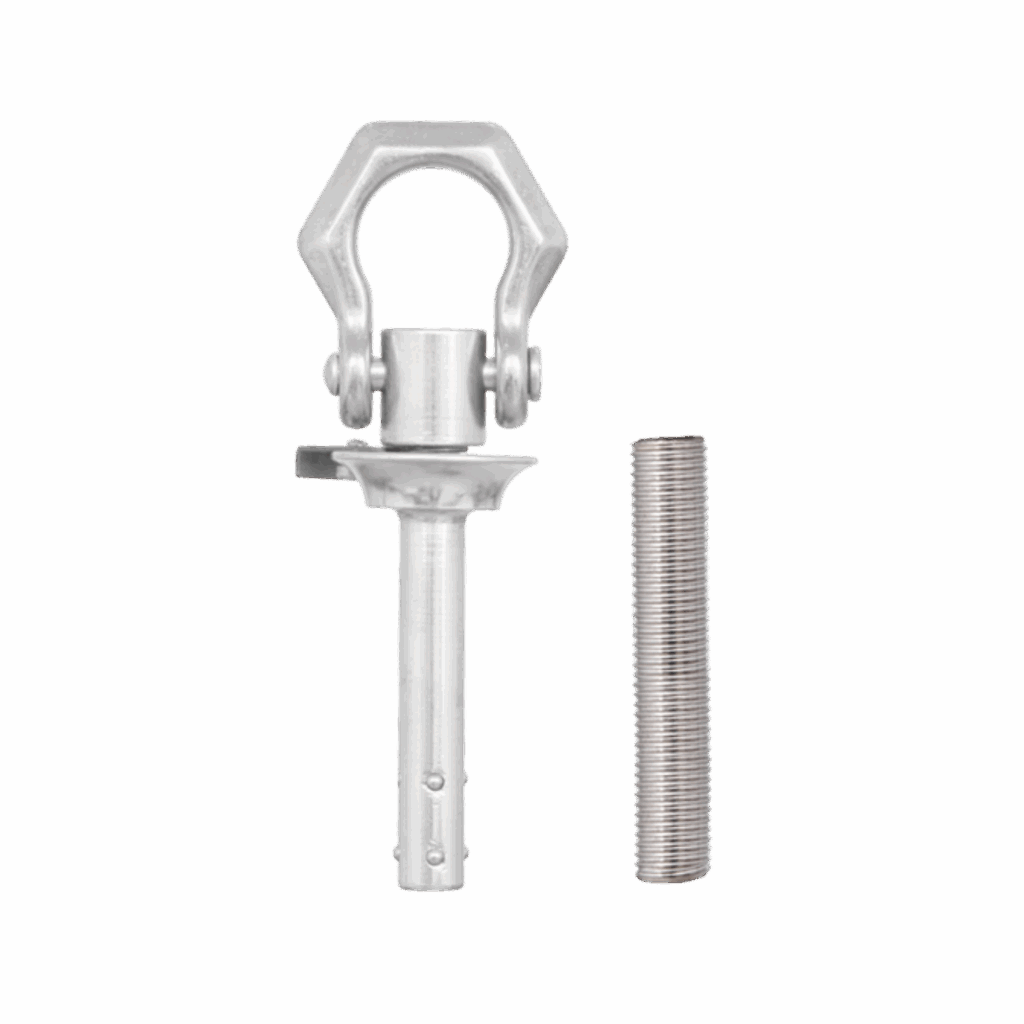

The KStrong Detent Concrete Anchor and SS Ferrule Set AFA930310 is designed for use as a Single Point Anchor by a Single User in Fall Restraint & Fall Arrest. This product is NOT approved for Abseiling. Its unique detent system allows it to be deployed quickly across multiple ferrule locations and provide swivel capability once engaged.

Key Features

FEATURES:

May be fixed to concrete using chemical adhesive such as Hilti RE-100 or RE-500. Chemical adhesive not included. See User Instruction Manual (UIM) for minimum fixing specifications.
Suitable for Fall Restraint, Fall Arrest.
This product is NOT suitable for Abseiling.
Maximum 1 user when used as a Single Point Anchor.
Limited multidirectional use, and may not exceed 20deg loading in tension, when installed into concrete.
This product should not deform under 15kN loads when used as a Single Point Anchor.
Anchorage Structural Requirement for this product when used as a Single Point Anchor is 15kN.
Ferrule supplied with nylon dust cover

MATERIAL:

Detent Anchor (AFA930310A) – Galvanized Alloy Steel

Ferrule (AFA930310S) – 316 Stainless Steel

WEIGHT:

349g +/- 25g

RELAVANT STANDARDS:

Certified to ASNZS 5532 2013.

Meets the Requirements of ASNZS 1891.4 2025
