KStrong, Unrivaled Safety
Description
Description

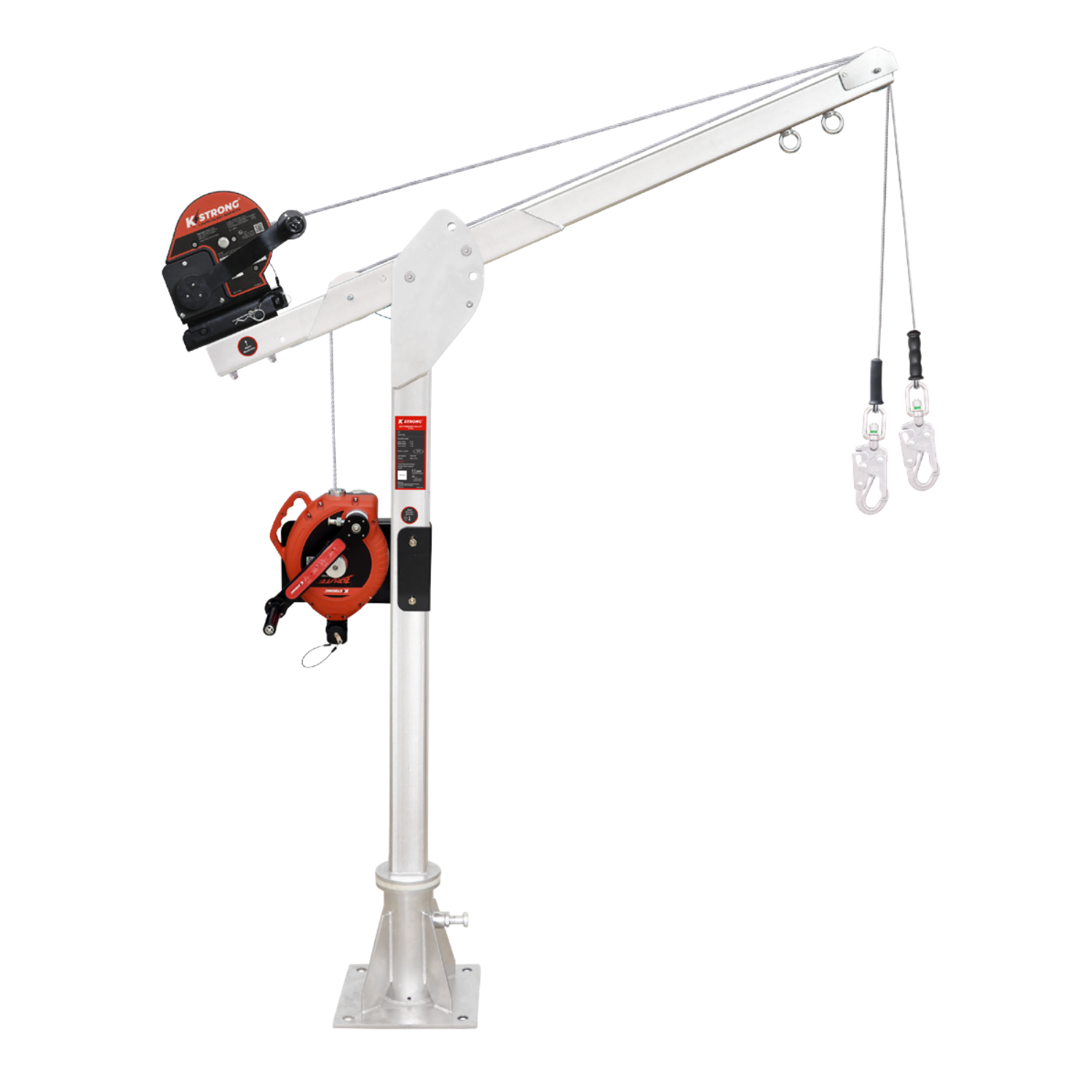

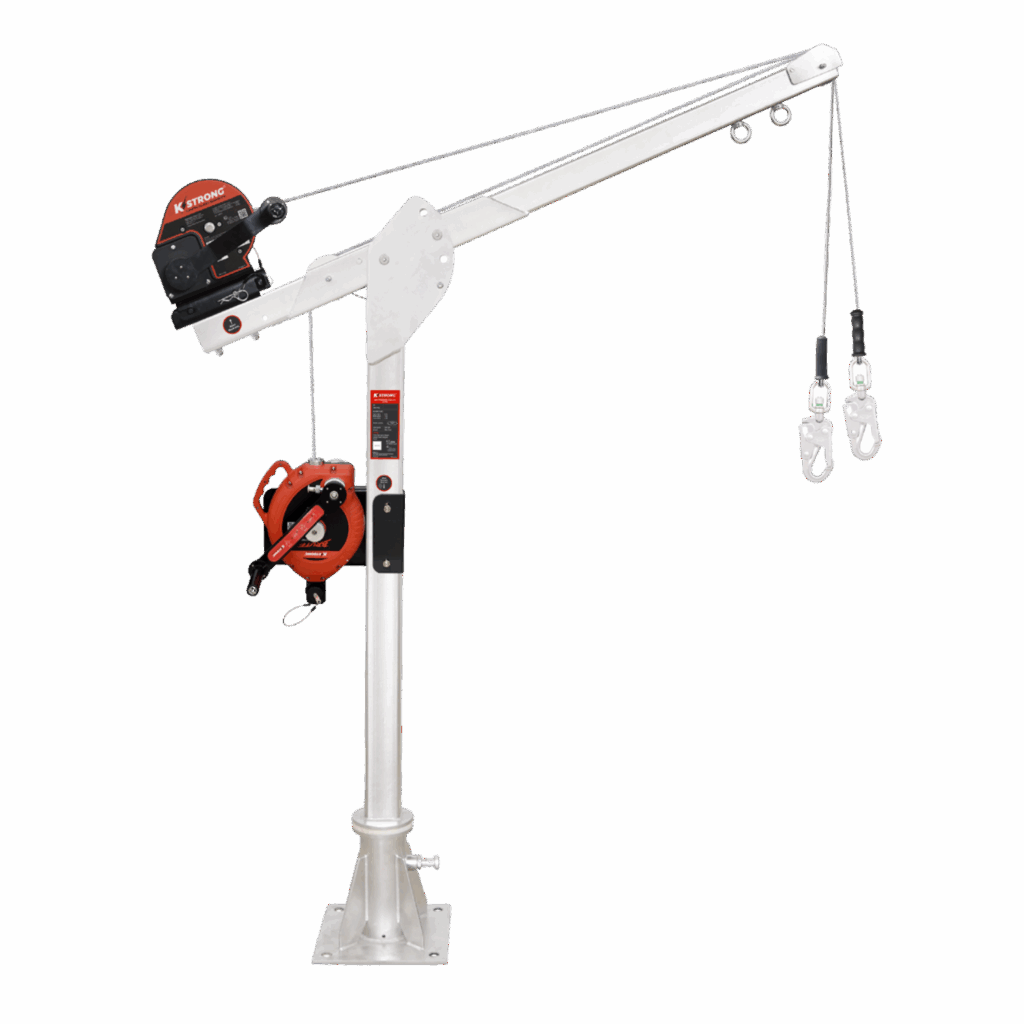

AFT7500-KStrong Extreme Davit
Key Features
FEATURES:
- Made of highly corrosion resistant stainless steel.
- Can swivel a complete 360 degrees on its mounted base, hence providing a versatile reach and access.
- Height of the Cantilever arm of the Extreme Davit is adjustable. This enables the use of the Extreme Davit even in those areas where the roof height is limited.
- Easily mounted on the floor as well as on the wall through special floor and wall mounting brackets. The Extreme Davit can also be mounted on the floor of heavy vehicles, hence making it extremely versatile in use.
- Equipped with universal mounting bracket to install Winches AFT730120, AFT730135 & AFT730042 onto the Extreme Davit.

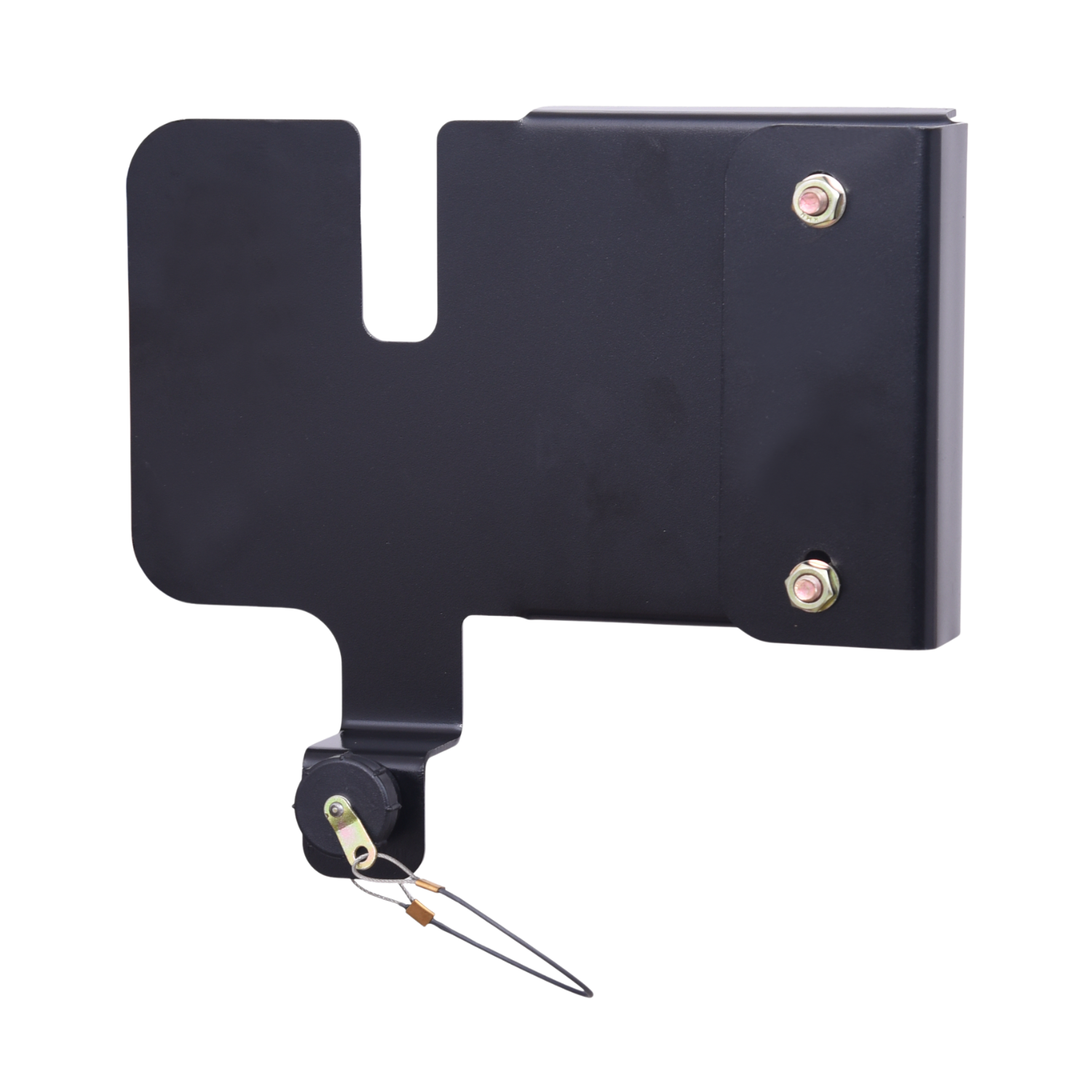

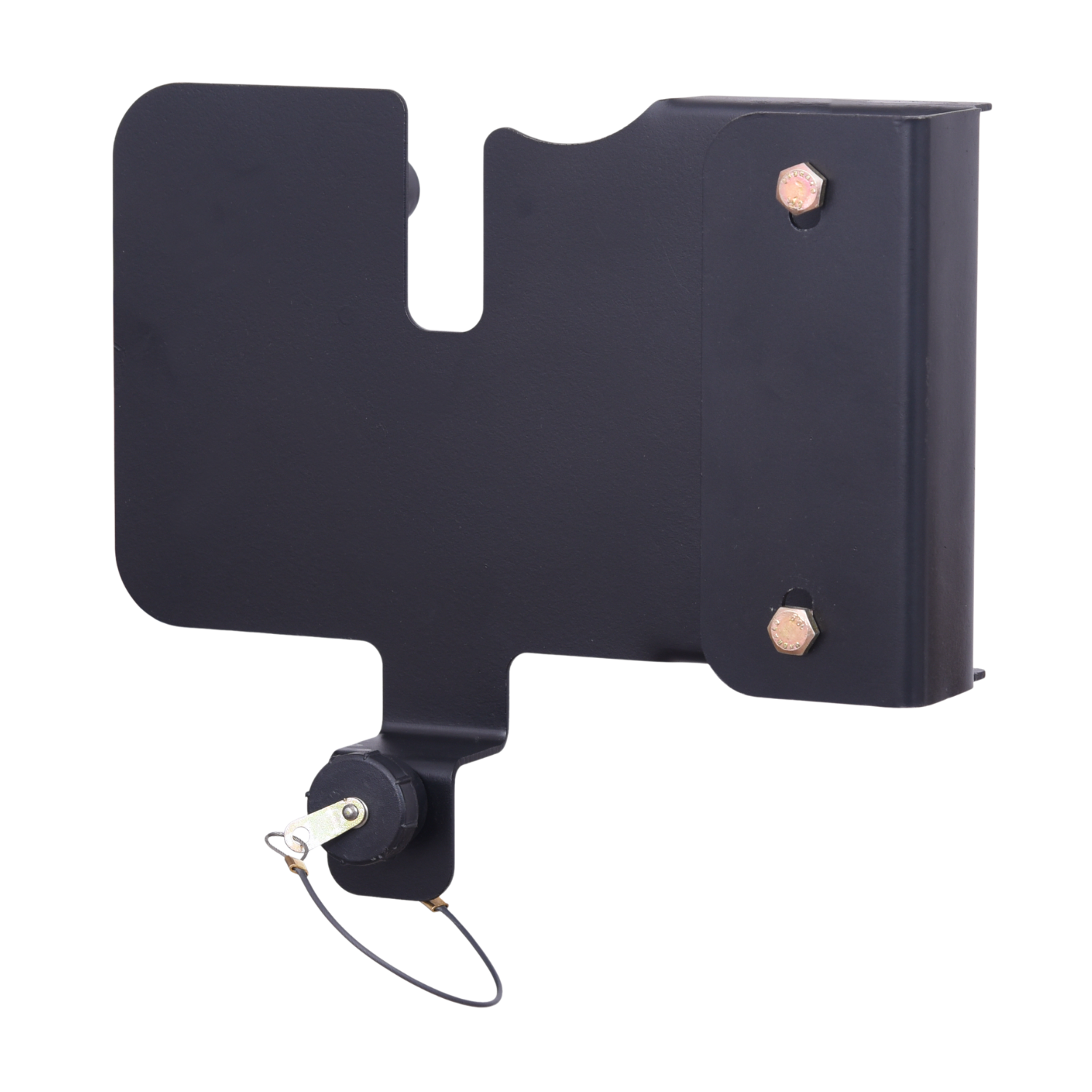

- Retrieval Fall Arrester Block AFS510020R, AFS510030R can also be installed for easy retrieval and arresting the fall of the user using the specialized mounting bracket AFT7500B20 and AFT7500B30 respectively.
MATERIAL:
Stainless Steel Polished
MAXIMUM LOAD CAPACITY:
300 kg
SYSTEM STRENGTH:
15kN
CERTIFICATION:
AS/NZS 5532:2013
EN 795:2012 TYPE A
WEIGHT:
Cantilever Arm: 15.9kgs
Boom Upright: 19.2kgs
Floor mount Base: 9.38kg
Wall Mount Base: 9.97kg
Concrete Sleeve Insert: 2.02 kg
