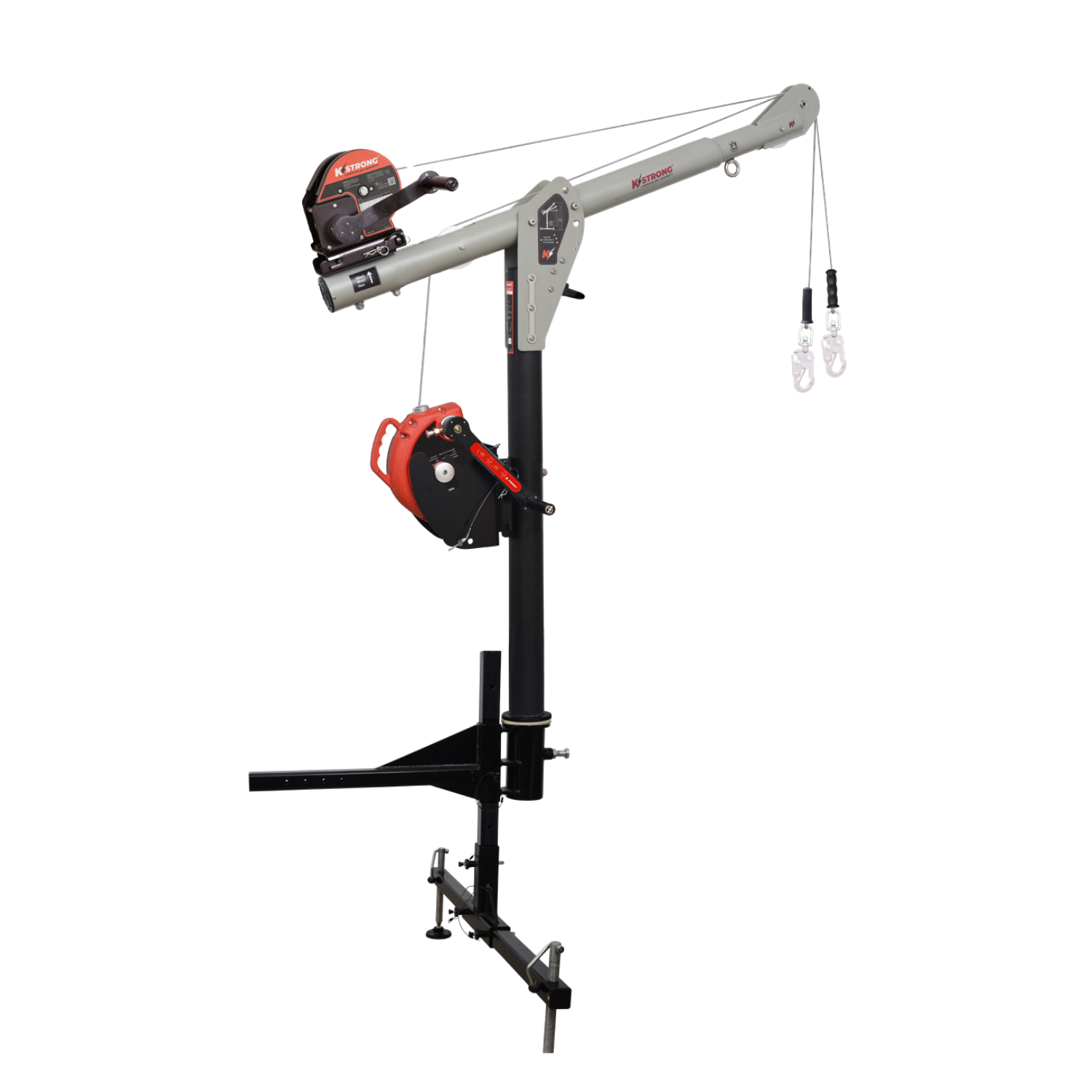

AFT751085-Hitch Mounting Davit
Key Features
FEATURES:
- The Hitch Mounting Davit (AFT751085) is a portable fall arrest system that offers a safe and secure solution for accessing confined spaces where overhead support structures are not available.
- The Davit can be easily and quickly attached to a vehicle with a tow hitch. This allows for convenient transportation and deployment of the system.
- The system comes with a upper mast offset (boom) that offers three adjustment positions. Users can adjust the height of the arm according to their requirements, providing flexibility in different confined space situations.
- The Davit includes a foldable leg, which aids in transportation and installation. The leg can be folded when not in use, making it easier to store and carry the system.
- The Hitch Mounting Davit is compatible with specific KStrong winches, such as AFT730020, AFT730040, AFTZ30042, AFT730120 and AFT730135. It is also compatible with retrieval blocks AFS510020R and AFS510030R. Each of these devices has its respective mounting bracket AFT710007UR for secure attachment to the Davit.

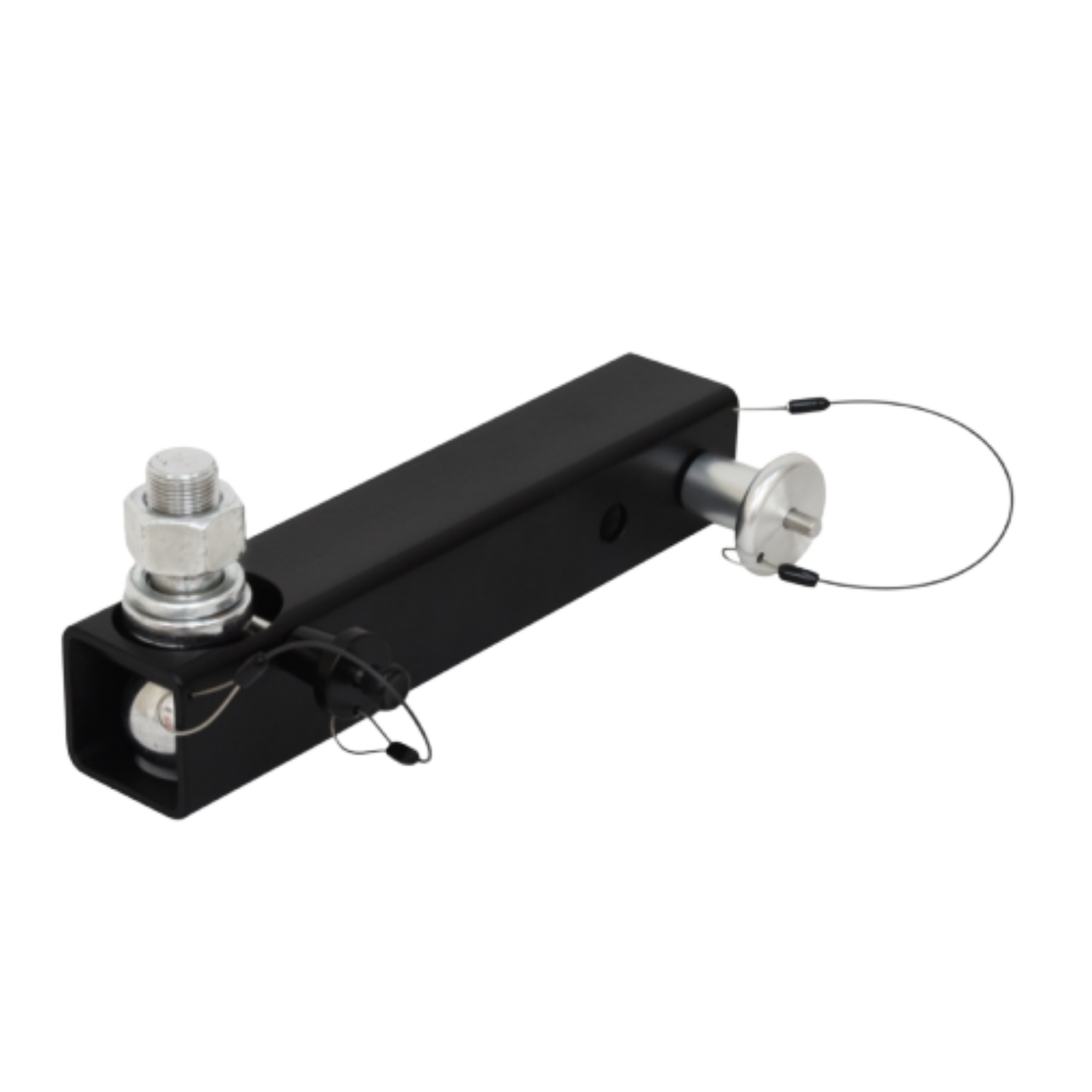

- The trailer hitch mount of the Davit is designed to fit into a 2” (51.0mm) hitch receiver. This allows the system to be attached to any vehicle with a compatible hitch receiver, providing a portable anchor point for confined space entry, retrieval, rescue, and fall arrest operations.
- Certified to EN 795:2012 Type B and AS/NZS 5532:201
MATERIAL:
High Strength and Durable Aluminium Alloy
MAXIMUM LOAD CAPACITY:
500 kgs (for Confined Space Rescue)
250 kgs (for Material Lifitng as per Machine Directive)
FINISH:
Powder Coated
SYSTEM STRENGTH:
15kN
CERTIFICATION:
AS/NZS 5532:2013
EN 795:2012 Type B
WEIGHT:
56.54kgs
