Swivel Bearing Anchor with Steel Fixing

SKU: AFA930316 Categories: Engineered Single Point Anchors, Engineered Systems

Description

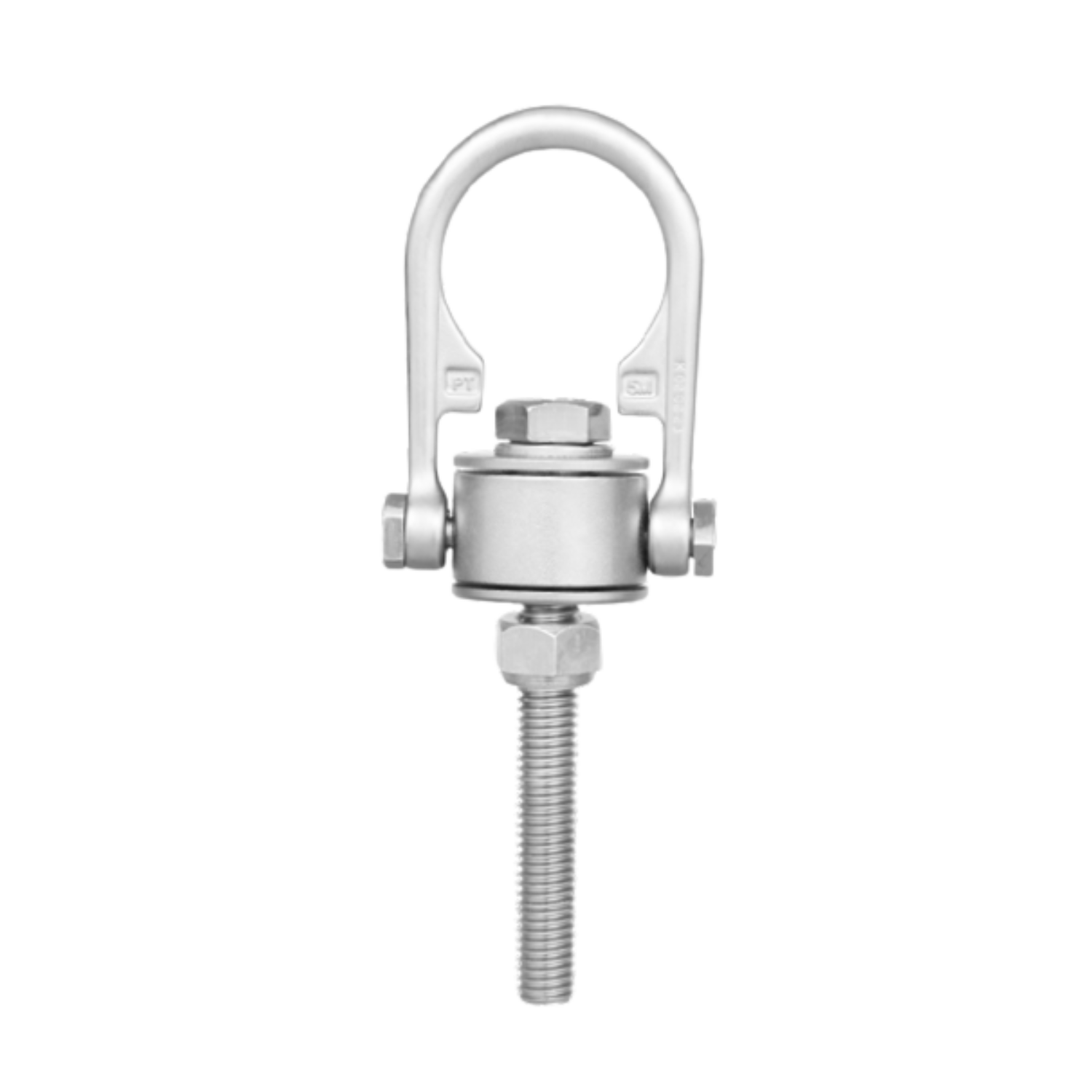

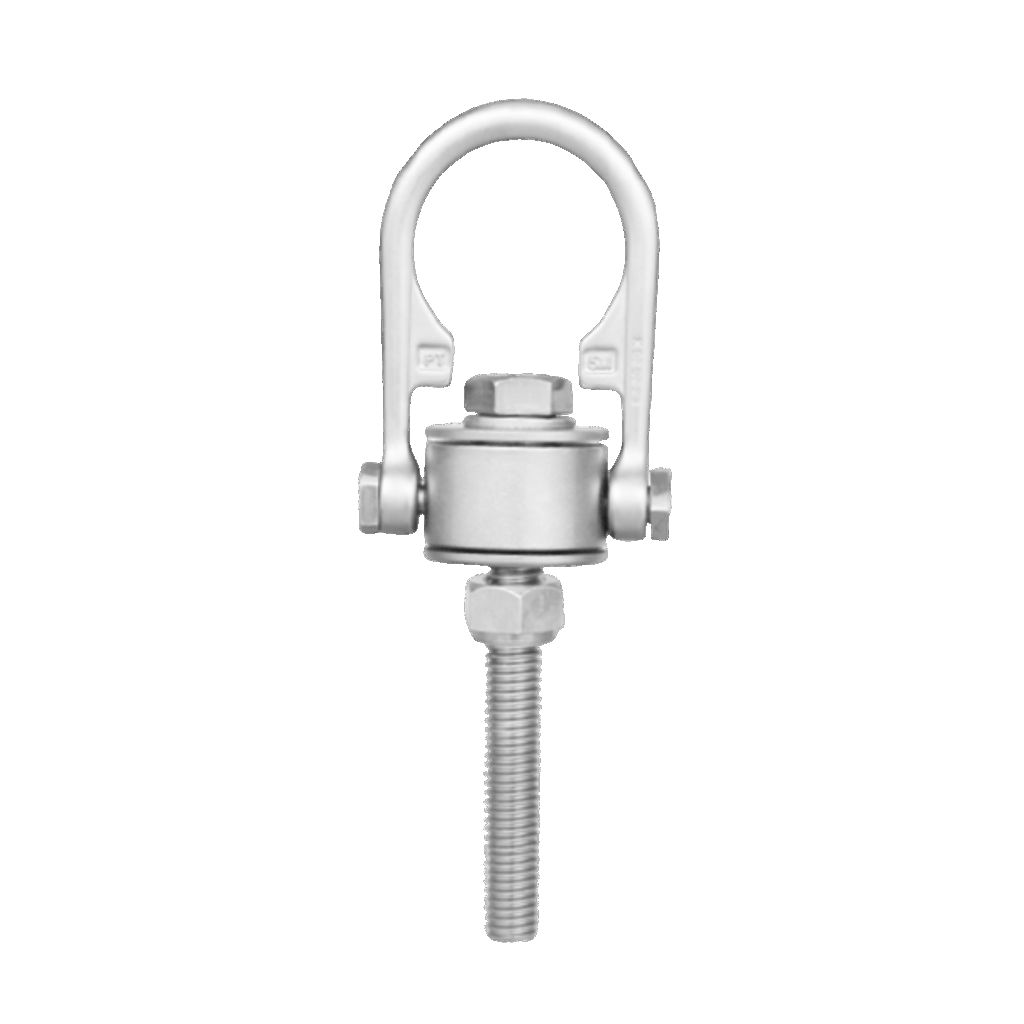

AFA930316-Swivel Bearing Anchor with Steel Fixing

The KStrong Swivel Bearing Anchor with Steel Fixing AFA930316 is designed for use as a Single Point Anchor by a Single User in Fall Restraint, Fall Arrest or Abseiling. This product’s unique twin sealed bearing system allow it to swivel smoothly under loads of up to 150kg.

Key Features

FEATURES:

May be fixed to steel or concrete. 130mm Fixing for steel included, with maximum effective installation length of 70mm. Fixing for concrete not included. See User Instruction Manual (UIM) for minimum fixing specifications.
Suitable for Fall Restraint, Fall Arrest and Abseil.
Maximum 1 user when used as a Single Point Anchor.
Fully multidirectional use when installed into Steel. Limited multidirectional use, and may not exceed 20deg loading in tension, when installed into concrete.
This product should not deform under 15kN loads when used as a Single Point Anchor.
Anchorage Structural Requirement for this product when used as a Single Point Anchor is 15kN.

MATERIAL:

Swivel Anchor – Galvanized Alloy Steel

Bolt & Lock Nut Fixing – 316 Stainless Steel

WEIGHT:

780g +/- 25g

RELAVANT STANDARDS:

Conforms to ASNZS 5532 2013.

Meets the Requirements of ASNZS 1891.4 2025
